Automatic Payment Program Run F110: SAP Tutorial

Introduction
The Payment Process includes the Following Steps

1. Invoices are Entered
2. Pending Invoices are analyzed for due date
3. Invoices due for payment are prepared for review
4. Payments are approved or modified
5. Invoices are paid

A  consistently high volume of invoices have to be processed. Accounts Payable Invoices have to be paid on time to receive possible discounts. The Accounting department wishes to perform this processing of invoices automatically. The Automatic Payment Program is a tool that will help users manage payables. SAP gives users the options to automatically:

1. Select Open(Pending) Invoices to be paid or collected
2. Payment Documents to be posted
3. Print Payment Media or generate EDI

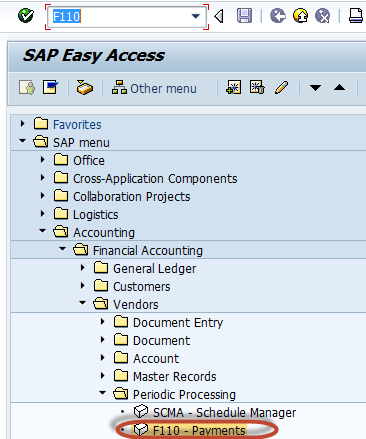

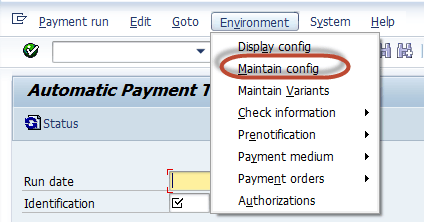

The Automatic Payment Program has been developed for both national and international payment transactions with vendors and customers , and handles both outgoing and incoming payments. Configuration We can configure the Payment Program by selecting the Payment Program (Tcode - F110 ) Application menu Environment -> Maintain Config

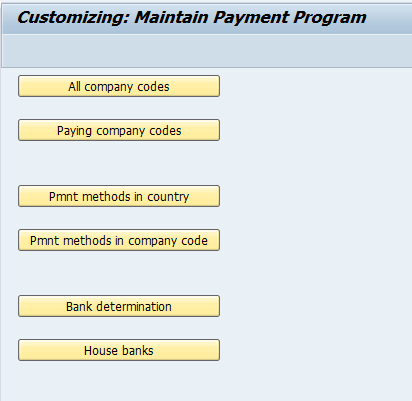

The Settings for Automatic Payment program are divided into following Categories :

1. All Company Codes
2. Paying Company Codes
3. Payment Methods / Country
4. Payment Methods / Company Codes
5. Bank Selection
6. House Banks

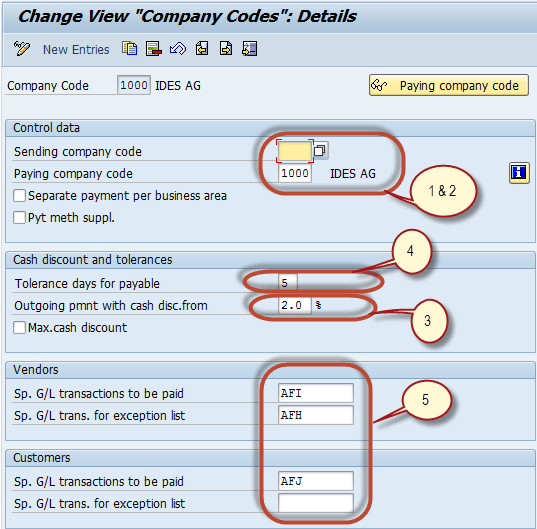

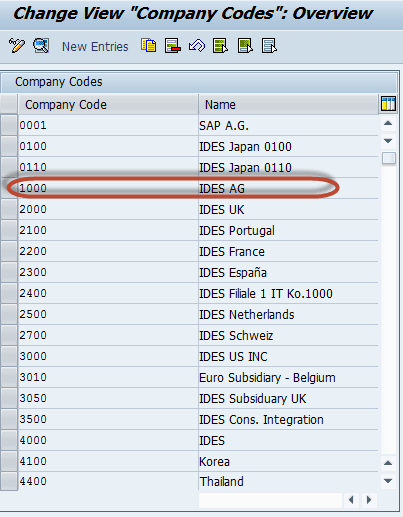

All Company Codes : In this section we perform the following settings

1. Inter Company Payment Relationship
2. The Company codes that process  payments
3. Cash Discounts
4. Tolerance days for Payments
5. The Customer and Vendor Transactions to be Processed

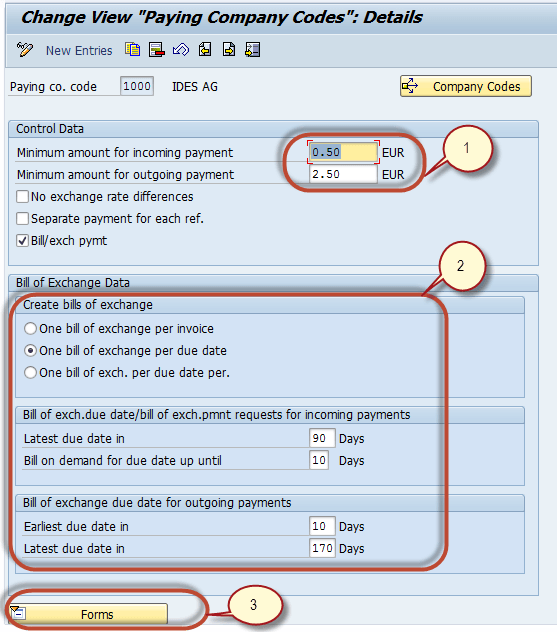

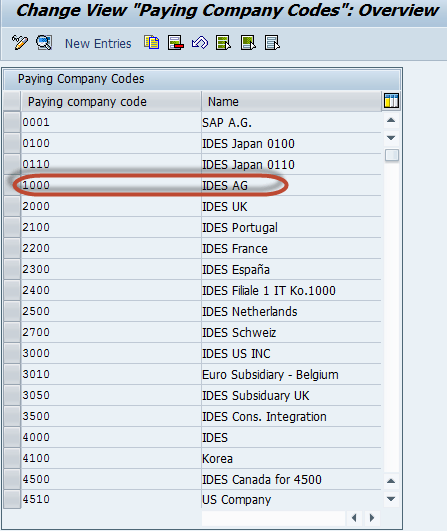

Paying Company codes : In this section we perform the following settings

1. Minimum Amounts for Incoming and Outgoing Payments
2. Bill of Exchange Parameters
3. Forms for Payment Advice and EDI

Payment Method  / Country : In this section we perform the following settings

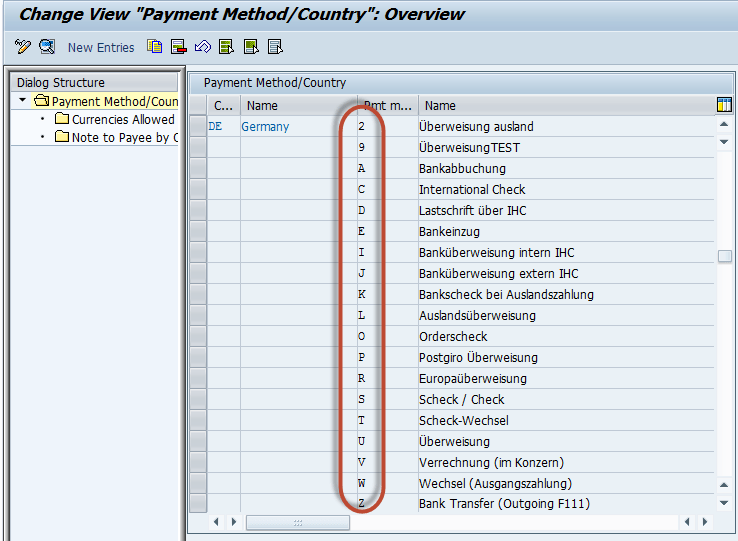

1. Methods of Payments - Cheques , bank transfers etc

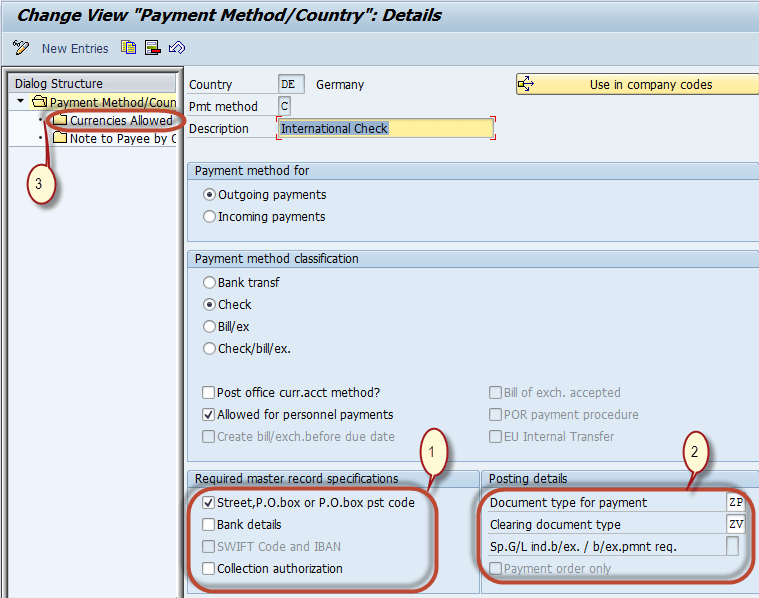

2. Settings for individual Payment Methods -
   1. Master record requirements
   2. Document Types for Posting
   3. Permitted currencies
   4. Print Programs

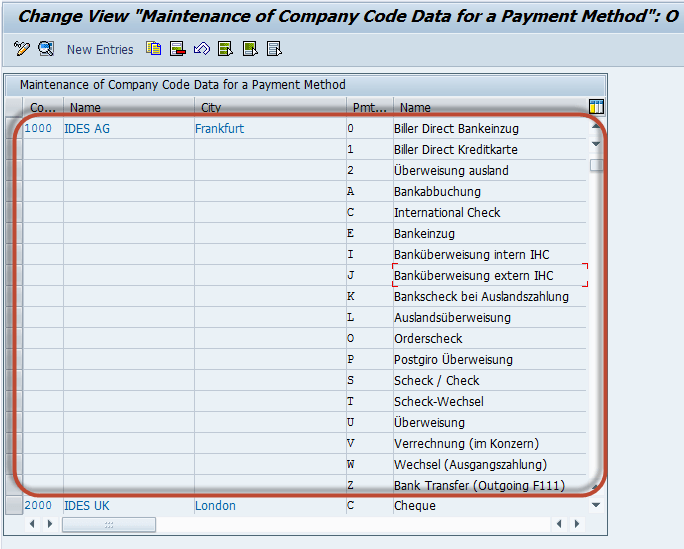

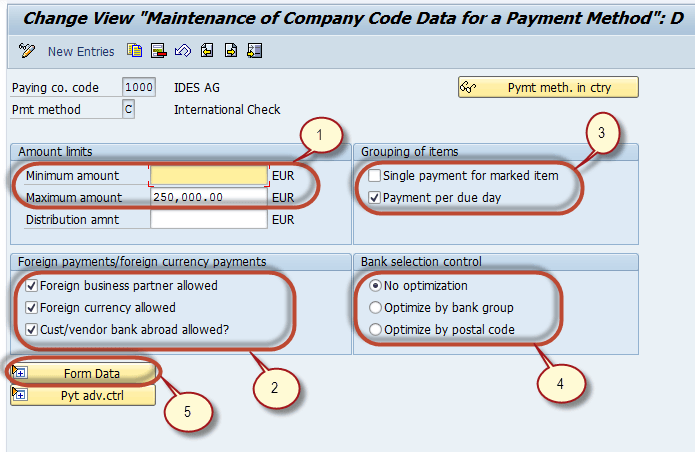

Payment Method / Company Code: In this section we perform the following settings

1. Minimum and maximum payment amounts
2. Whether payments abroad and foreign currencies are allowed
3. Grouping Options
4. Bank Optimization
5. Forms for payment media

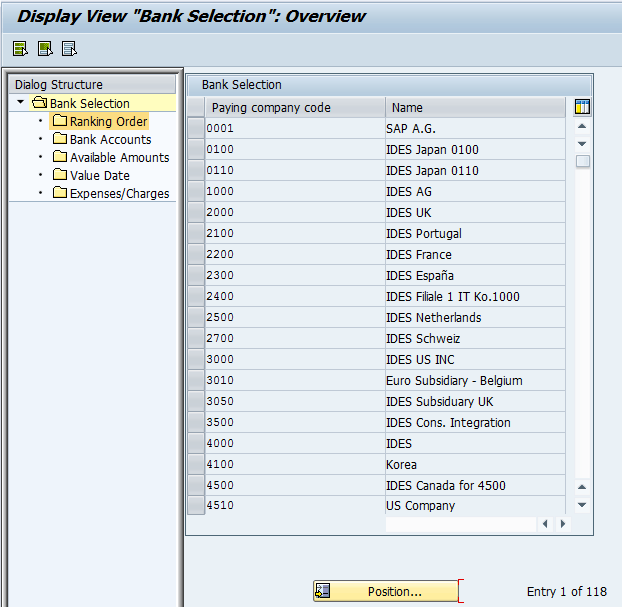

Bank Selection :

1. Ranking Order
2. Amounts
3. Accounts
4. Charges
5. Value Dates

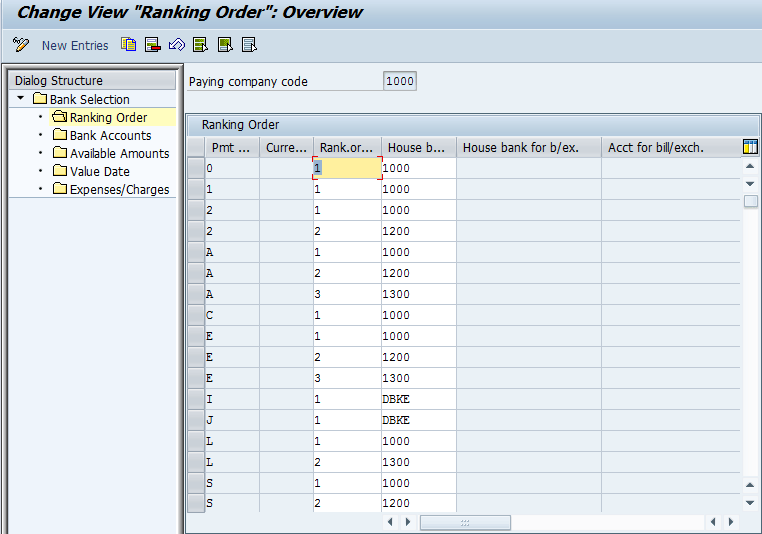

Ranking Order

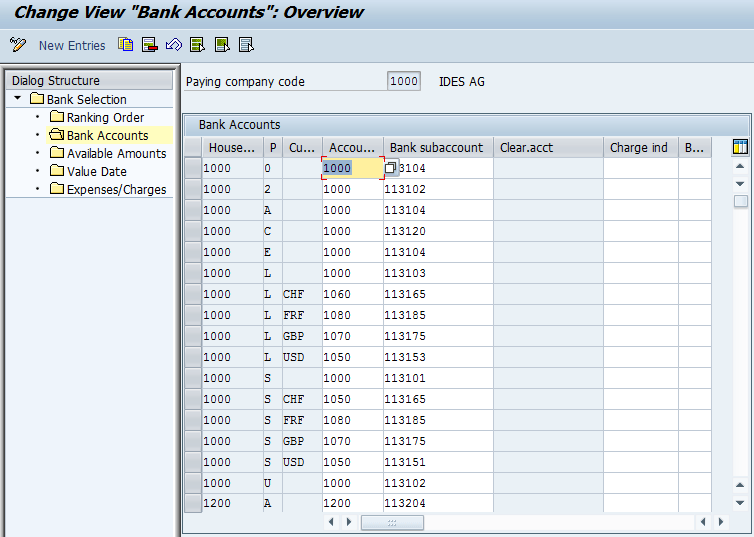

Bank Accounts

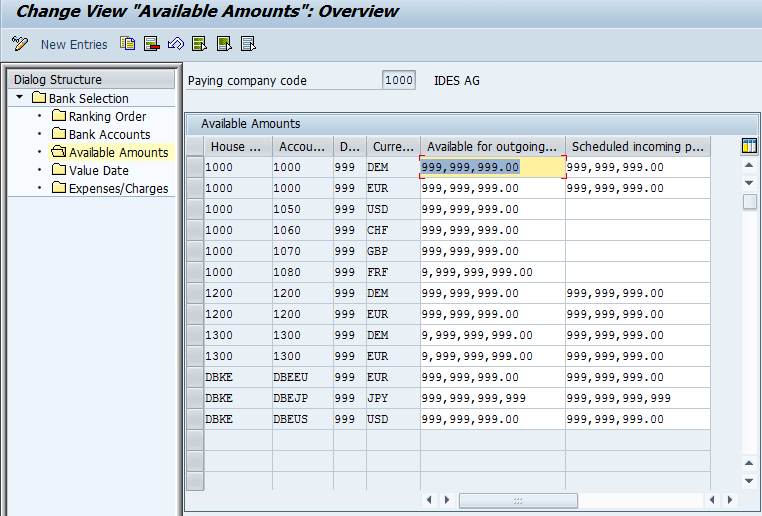

Available Amounts

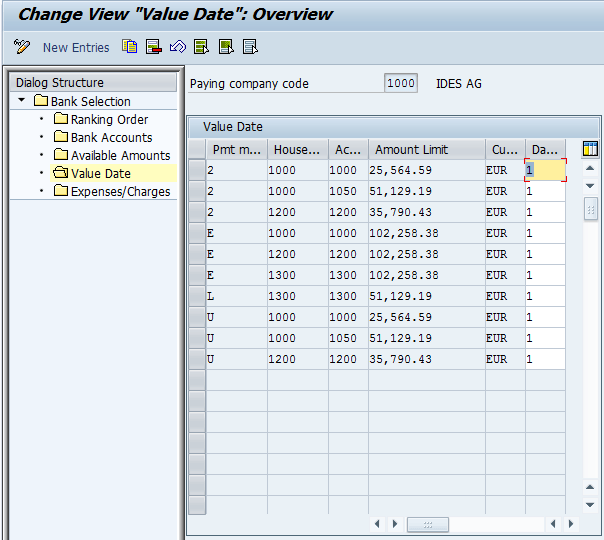

Value Dates

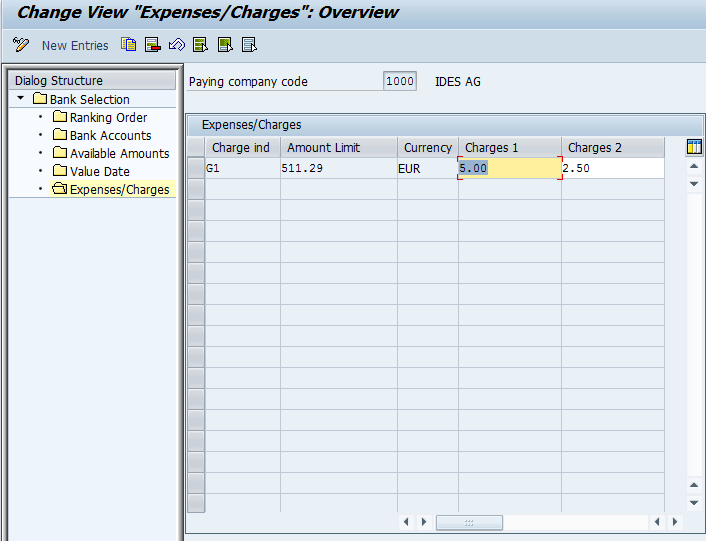

Expenses / Charges





Execution : After  Configuration of the Payment Process we will enter parameters to execute the program. Enter the Transaction code F110 in the SAP Command Field

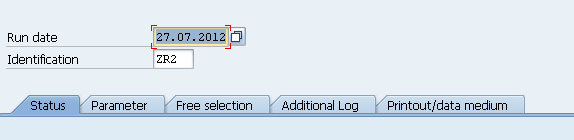

Every Payment Program run is identified by two fields

1. Run date
2. Identification

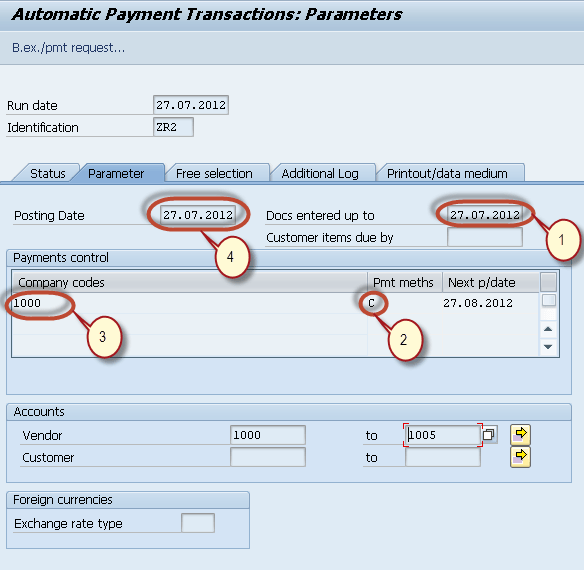

In the Parameters Tab , We have to define the following

1. What is to be paid  - Docs. Entered Up to
2. What payment methods will be used - Payment Methods
3. When will the payments be made - Posting Date
4. Which company codes will be considered - Company Codes
5. How are they going to be paid - Payment Method Sequence decides the Priority of the Payment Method

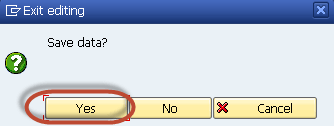

Save the Parameters Entered

After the Parameters are Entered we execute the Program by pressing the proposal button in Application Toolbar

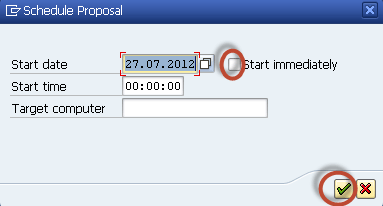

In the next dialog box , Check the "Start Immediately" and press Continue

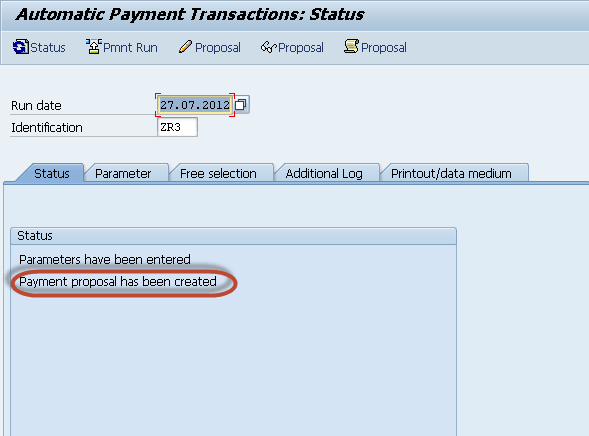

A payment proposal is generated based on the parameters.

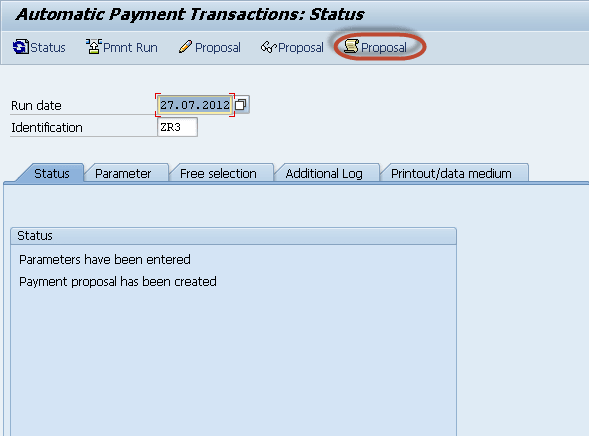

  We can view the Proposal Log for possible errors by Pressing  the Proposal Log Button

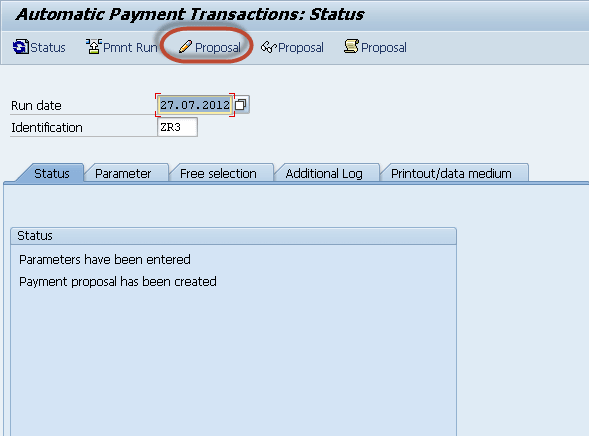

We can edit the proposal to block the some payments if we want, Press the Edit Proposal Button

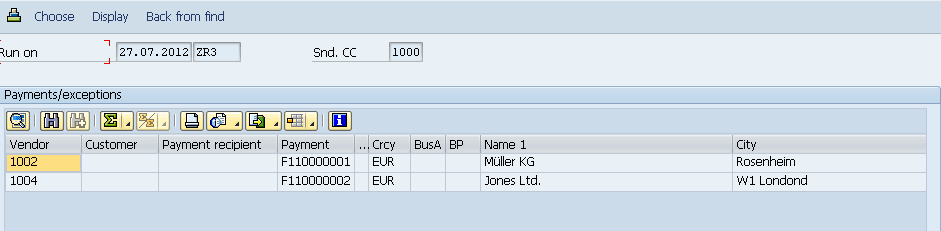

  In the next screen , the Proposal List of Vendors is generated who are to receive the Payments

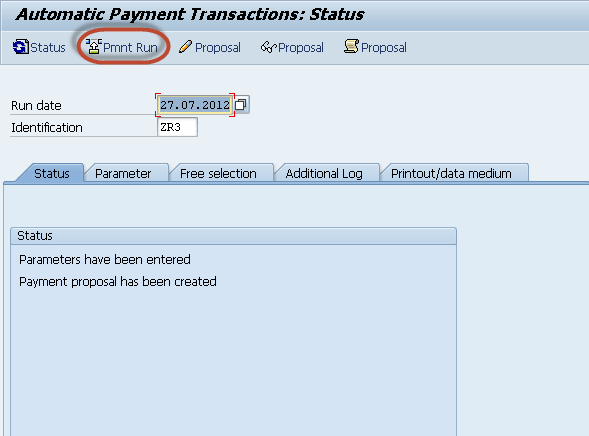

After edit the Proposal , and then run the payment run to release the payments. We can schedule the payment run by coming back to main screen pressing the Payment Run button

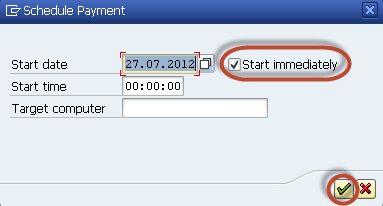

  In the next Dialog box , Check "Start Immediately" to start the payment run instantly and Press continue

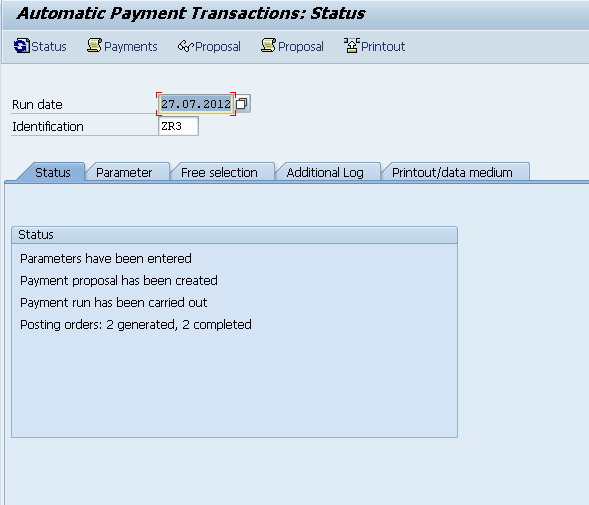

  We can check the status of the Payment run on the Status Tab
