SAP CRM Business Transaction Process

Details

Last Updated: 25 January 2021

• A business transaction in SAP CRM consists of a leading business transaction category.
• Structure of CRM business transaction depends up on leading business transaction category.
• CRM business transaction consists of the header level and the item level (Fig. 2 & Fig. 3).

Header (General) and Item Data representation in a Business Transaction

Header (General) and Item Data representation in a Business Transaction

Transaction Types Item Categories and Category Description

• Transaction Type structure:

• A transaction type defines:
  • attributes
  • characteristics
  • controlling attributes
• In SAP CRM business transaction processing is controlled by a transaction type
• The leading business transaction category in an transaction type controls:
  • specific settings that can be applied on a lower level
  • other business transactions categories to which it could be assigned
  • detailed control of the transaction
• The properties and attributes of a business transaction item are specified by an item category.
• Item category controls how the item is processed.

• First an item category needs to be assigned to an item object type that defines the business context in which an item category is used.

• Similar to transaction types, an item category can be assigned to one or more business transaction categories.
• Specific settings applied to item categories on a lower level depend upon the leading item category (object type).
• In SAP CRM, for processing business transactions, default item categories need to be defined per business transaction category, and item category group.
• Also, it is possible to define alternative item categories which can be entered manually for system default.

• Item Category determination depends upon:
  • Transaction Type
  • Item Category Group
  • Item Category Usage
  • Main Item Category
• Item Category Group is a field in the product master.
• Item Category Usage comes from the programming logic.

Copy Transaction or Follow up transaction

• A follow-up transaction represents the next business transaction in the current business process
  • For example, from a released Sales Contract, Sales Orders can be created.
  • Thus in this case, Sales Order is viewed as a follow-up document for the Sales Contract
• Also, a business transaction can be copied to create another transaction of same business transaction type
  • For example, a sales order can be copied to create another sales order
• From an existing business transaction it is possible to create a copy or to create a follow up transaction.
• In case, a business transaction is copied:
  • transaction type is same
  • header and item data is copied
  • transaction history is not updated
  • no relation to the source transaction is maintained
• In case, a follow up transaction is created from a business transaction:
  • it is possible to configure the transaction type for the follow-up transaction
  • header data is copied
  • you can select items
  • transaction history is updated
  • for this copy control setting should be maintained
  • this flow can be seen in the Transaction History assignment block

Transaction History assignment block of a business transaction[

• Following are the required settings in the copy control settings:
  • Copy control for transaction types
  • Copy control for item categories
  • Settings for target transaction type are maintained
  • Determination of the item category during the copy (optional)
  • Implementation of CRM_COPY_BADI (optional)
• In SAP CRM BAdI definition CRM_COPY_BADI is provided for implementation to write your own data transfer routines.
• You can access the interlink-age between business transactions at header and item level through the transaction history data.
• SAP CRM also provides option Subsequent Referencing, where you can link an activity while it is being created to an existing activity.
• This will make the new transaction a follow up to the existing one (Fig. 4).

Basic Functions in Business Transactions

• Basic functions in Business Transactions:
  • Text Determination
  • Date Management
  • Status Management
  • Incompleteness Check
  • Partner Processing
  • Action Processing
  • Pricing
• For each business transaction in SAP CRM it is possible to maintain different notes.

• As per the requirement, it is possible to combine a number of text types in the text determination procedure.

• Text determination procedures are used in the business transactions for different relevant texts in the transaction.

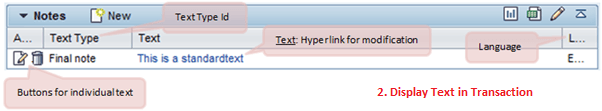

• CRM Web UI provides assignment blocks to
  • Create a new text with a particular text type.
  • Display the text in the business transaction
  • Modify the particular text
• With date management it is possible to process the dates that are relevant for the business transaction.
• It consists of:
  • Date type
  • Date rule
  • Duration
  • Date Profile
