switch...case statement in C (Examples)

Details

What is Switch Statement in C?

Switch statement in C tests the value of a variable and compares it with multiple cases. Once the case match is found, a block of statements associated with that particular case is executed.

Each case in a block of a switch has a different name/number which is referred to as an identifier. The value provided by the user is compared with all the cases inside the switch block until the match is found.

If a case match is NOT found, then the default statement is executed, and the control goes out of the switch block.

In this tutorial, you will learn-

Switch Case Syntax

A general syntax of how switch-case is implemented in a 'C' program is as follows:

switch( expression )
{
	case value-1:
			Block-1;
			Break;
	case value-2:
			Block-2;
			Break;
	case value-n:
			Block-n;
			Break;
	default:
			Block-1;
			Break;
}
Statement-x;

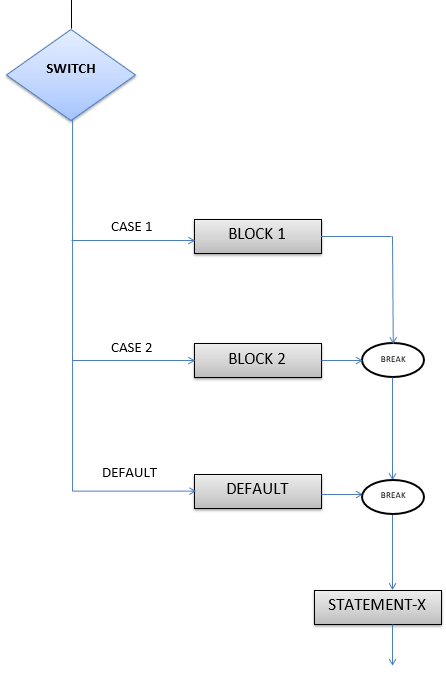

Flow Chart Diagram of Switch Case

Following diagram illustrates how a case is selected in switch case:

How Switch Works

Switch Case Example in C

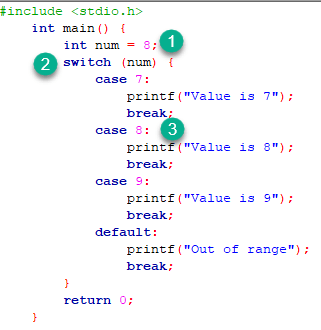

Following program illustrates the use of switch:

#include <stdio.h>
    int main() {
        int num = 8;
        switch (num) {
            case 7:
                printf("Value is 7");
                break;
            case 8:
                printf("Value is 8");
                break;
            case 9:
                printf("Value is 9");
                break;
            default:
                printf("Out of range");
                break;
        }
        return 0;
    }

Output:

Value is 8

  1. In the given program we have explain initialized a variable num with value 8.
  2. A switch construct is used to compare the value stored in variable num and execute the block of statements associated with the matched case.
  3. In this program, since the value stored in variable num is eight, a switch will execute the case whose case-label is 8. After executing the case, the control will fall out of the switch and program will be terminated with the successful result by printing the value on the output screen.

Try changing the value of variable num and notice the change in the output.

For example, we consider the following program which defaults:

#include <stdio.h>
int main() {
int language = 10;
  switch (language) {
  case 1:
    printf("C#\n");
    break;
  case 2:
    printf("C\n");
    break;
  case 3:
    printf("C++\n");
    break;
  default:
    printf("Other programming language\n");}}

Output:

Other programming language

When working with switch case in C, you group multiple cases with unique labels. You need to introduce a break statement in each case to branch at the end of a switch statement.

The optional default case runs when no other matches are made.

We consider the following switch statement:

#include <stdio.h>
int main() {
int number=5;
switch (number) {
  case 1:
  case 2:
  case 3:
    printf("One, Two, or Three.\n");
    break;
  case 4:
  case 5:
  case 6:
    printf("Four, Five, or Six.\n");
    break;
  default:
    printf("Greater than Six.\n");}}

Output:

Four, Five, or Six.

Nested Switch in C

In C, we can have an inner switch embedded in an outer switch. Also, the case constants of the inner and outer switch may have common values and without any conflicts.

We considere the following program which the user to type his own ID, if the ID is valid it will ask him to enter his password, if the password is correct the program will print the name of the user, otherwise ,the program will print Incorrect Password and if the ID does not exist , the program will print Incorrect ID

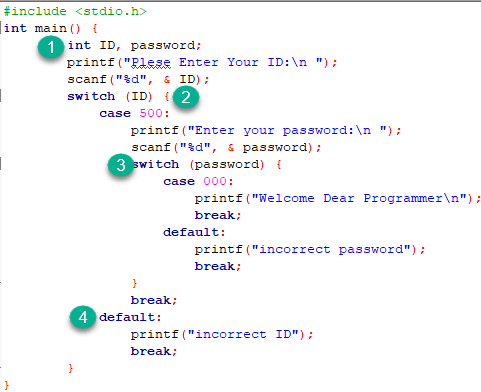

#include <stdio.h>
int main() {
        int ID = 500;
        int password = 000;
        printf("Plese Enter Your ID:\n ");
        scanf("%d", & ID);
        switch (ID) {
            case 500:
                printf("Enter your password:\n ");
                scanf("%d", & password);
                switch (password) {
                    case 000:
                        printf("Welcome Dear Programmer\n");
                        break;
                    default:
                        printf("incorrect password");
                        break;
                }
                break;
            default:
                printf("incorrect ID");
                break;
        }
}

OUTPUT:

Plese Enter Your ID:
 500
Enter your password:
 000
Welcome Dear Programmer

  1. In the given program we have explained initialized two variables: ID and password
  2. An outer switch construct is used to compare the value entered in variable ID. It execute the block of statements associated with the matched case(when ID==500).
  3. If the block statement is executed with the matched case, an inner switch is used to compare the values entered in the variable password and execute the statements linked with the matched case(when password==000).
  4. Otherwise, the switch case will trigger the default case and print the appropriate text regarding the program outline.

Why do we need a Switch case?

There is one potential problem with the if-else statement which is the complexity of the program increases whenever the number of alternative path increases. If you use multiple if-else constructs in the program, a program might become difficult to read and comprehend. Sometimes it may even confuse the developer who himself wrote the program.

The solution to this problem is the switch statement.

Rules for switch statement:

Summary
