Selenium Automation Framework: Data Driven, Keyword Driven & Hybrid

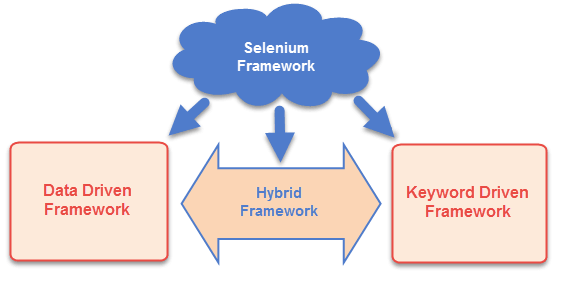

There are mainly three type of frameworks created by Selenium WebDriver to automate manual test cases

• Data Driven Test Framework
• Keyword Driven Test Framework
• Hybrid Test Framework

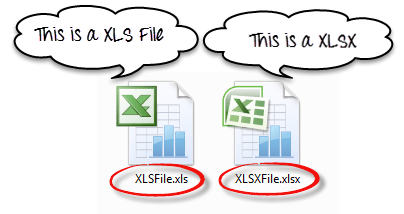

To read or write an Excel, Apache provides a very famous library POI. This library is capable enough to read and write both XLS and XLSX file format of Excel.

To read XLS files, an HSSF implementation is provided by POI library.

To read XLSX, XSSF implementation of POI library will be the choice. Let's study these implementations in detail.

We already learned about Data Driven Testing in our previous tutorial

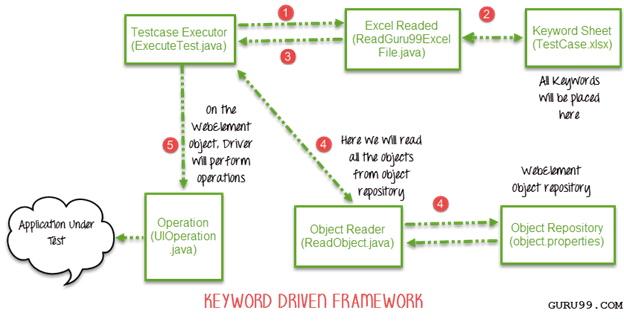

Here is how the complete framework looks like

As you can see it's a 5 step framework. Let's study it stepwise in detail

Step 1)

• The driver script Execute.java will call ReadgtupapersExcelFile.java
• ReadgtupapersExcelFile.java has POI script to read data from an Excel

Step 2)

• ReadgtupapersExcelFile.java will read data from TestCase.xlsx

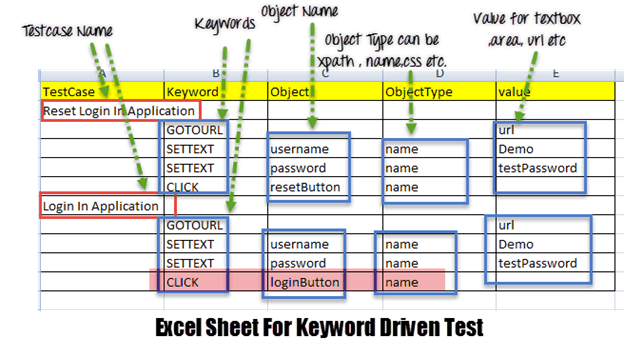

• Here is how the sheet looks like-

• According to the keywords written in Excel file, the framework will perform the operation on UI.
• For example, we need to click a button 'Login.' Correspondingly, our Excel will have a keyword 'Click.' Now the AUT can have hundreds of button on a page, to identify a Login button, in Excel we will input Object Name as loginButton & object type as a name (see highlighted the row in above image). The Object Type could be Xpath, name CSS or any other value

Step 3) ReadgtupapersExcelFile.java will pass this data to the driver script Execute.java

Step 4)

• For all of our UI web elements, we need to create an object repository where we will place their element locator (like Xpath, name, CSS path, class name etc.)

• Execute.java (our driver script) will read the entire Object Repository and store it in a variable

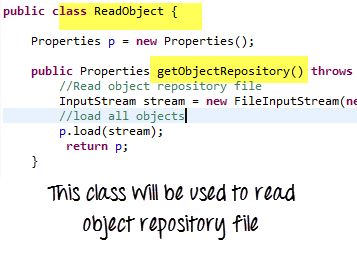

• To read this object repository, we need a ReadObject class which has a getObjectRepository method to read it.



NOTE: You may think why do we need to create an object repository. The answer helps in code maintenance. For example, we are using the button with name = btnlogin in 10 different test cases. In future, the developer decides to change the name from btnlogin to submit. You will have to make a change in all the 10 test cases. In the case of an object repository, you will make the change just once in the repository.

Step 5)

• The driver will pass the data from Excel & Object Repository to UIOperation class

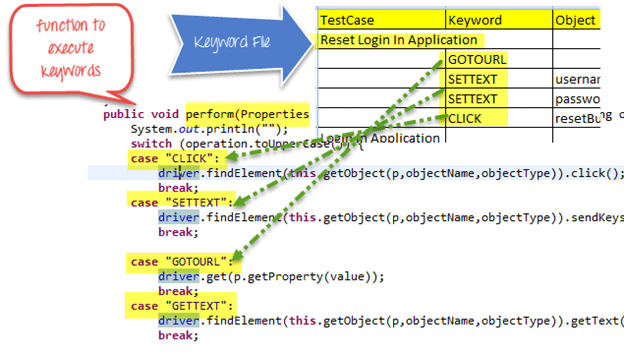

• UIOperation class has functions to perform actions corresponding to keywords like CLICK, SETTEXT etc… mentioned in the excel
• UIOperation class is a Java class which has the actual implementation of the code to perform operations on web elements

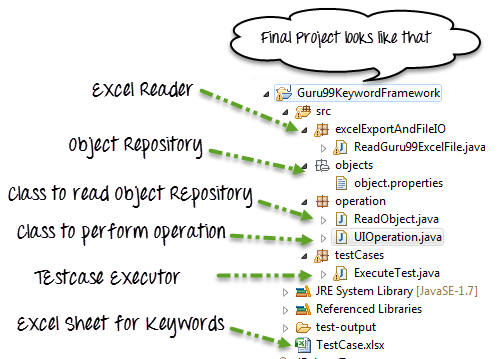

The complete project will look like-

Let's look into an example:

Test Scenario

• We are executing 2 test cases
• Test Case 1:
• Goto http://demo.gtupapers.com/V4/
• Enter User ID
• Enter Password
• Click Reset
• Test Case 2:
• Goto http://demo.gtupapers.com/V4/
• Enter User ID
• Enter Password
• Click Login

object.properties

url=http://demo.gtupapers.com/V4/

username=uid

password=password

title=barone

loginButton=btnLogin

resetButton=btnReset

ReadgtupapersExcelFile.java

package excelExportAndFileIO;
import java.io.File;
import java.io.FileInputStream;
import java.io.IOException;
import org.apache.poi.hssf.usermodel.HSSFWorkbook;
import org.apache.poi.ss.usermodel.Sheet;
import org.apache.poi.ss.usermodel.Workbook;
import org.apache.poi.xssf.usermodel.XSSFWorkbook;
public class ReadgtupapersExcelFile {

    public Sheet readExcel(String filePath,String fileName,String sheetName) throws IOException{
    //Create a object of File class to open xlsx file
    File file =    new File(filePath+"\\"+fileName);
    //Create an object of FileInputStream class to read excel file
    FileInputStream inputStream = new FileInputStream(file);
    Workbook gtupapersWorkbook = null;
    //Find the file extension by spliting file name in substing and getting only extension name
    String fileExtensionName = fileName.substring(fileName.indexOf("."));
    //Check condition if the file is xlsx file
    if(fileExtensionName.equals(".xlsx")){
    //If it is xlsx file then create object of XSSFWorkbook class
    gtupapersWorkbook = new XSSFWorkbook(inputStream);
    }
    //Check condition if the file is xls file
    else if(fileExtensionName.equals(".xls")){
        //If it is xls file then create object of XSSFWorkbook class
        gtupapersWorkbook = new HSSFWorkbook(inputStream);
    }
    //Read sheet inside the workbook by its name
    Sheet gtupapersSheet = gtupapersWorkbook.getSheet(sheetName);
     return gtupapersSheet;
    }
}

ReadObject.java

package operation;
import java.io.File;
import java.io.FileInputStream;
import java.io.IOException;
import java.io.InputStream;
import java.util.Properties;
public class ReadObject {
    Properties p = new Properties();
    public Properties getObjectRepository() throws IOException{
        //Read object repository file
        InputStream stream = new FileInputStream(new File(System.getProperty("user.dir")+"\\src\\objects\\object.properties"));
        //load all objects
        p.load(stream);
         return p;
    }

}

UIOperation.java

package operation;
import java.util.Properties;
import org.openqa.selenium.By;
import org.openqa.selenium.WebDriver;
public class UIOperation {
    WebDriver driver;
    public UIOperation(WebDriver driver){
        this.driver = driver;
    }
    public void perform(Properties p,String operation,String objectName,String objectType,String value) throws Exception{
        System.out.println("");
        switch (operation.toUpperCase()) {
        case "CLICK":
            //Perform click
            driver.findElement(this.getObject(p,objectName,objectType)).click();
            break;
        case "SETTEXT":
            //Set text on control
            driver.findElement(this.getObject(p,objectName,objectType)).sendKeys(value);
            break;

        case "GOTOURL":
            //Get url of application
            driver.get(p.getProperty(value));
            break;
        case "GETTEXT":
            //Get text of an element
            driver.findElement(this.getObject(p,objectName,objectType)).getText();
            break;
        default:
            break;
        }
    }

    /**
     * Find element BY using object type and value
     * @param p
     * @param objectName
     * @param objectType
     * @return
     * @throws Exception
     */
    private By getObject(Properties p,String objectName,String objectType) throws Exception{
        //Find by xpath
        if(objectType.equalsIgnoreCase("XPATH")){

            return By.xpath(p.getProperty(objectName));
        }
        //find by class
        else if(objectType.equalsIgnoreCase("CLASSNAME")){

            return By.className(p.getProperty(objectName));

        }
        //find by name
        else if(objectType.equalsIgnoreCase("NAME")){

            return By.name(p.getProperty(objectName));

        }
        //Find by css
        else if(objectType.equalsIgnoreCase("CSS")){

            return By.cssSelector(p.getProperty(objectName));

        }
        //find by link
        else if(objectType.equalsIgnoreCase("LINK")){

            return By.linkText(p.getProperty(objectName));

        }
        //find by partial link
        else if(objectType.equalsIgnoreCase("PARTIALLINK")){

            return By.partialLinkText(p.getProperty(objectName));

        }else
        {
            throw new Exception("Wrong object type");
        }
    }
}

ExecuteTest.java

package testCases;
import java.util.Properties;
import operation.ReadObject;
import operation.UIOperation;
import org.apache.poi.ss.usermodel.Row;
import org.apache.poi.ss.usermodel.Sheet;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.firefox.FirefoxDriver;
import org.testng.annotations.Test;
import excelExportAndFileIO.ReadgtupapersExcelFile;
public class ExecuteTest {
@Test
    public void testLogin() throws Exception {
        // TODO Auto-generated method stub
WebDriver webdriver = new FirefoxDriver();
ReadgtupapersExcelFile file = new ReadgtupapersExcelFile();
ReadObject object = new ReadObject();
Properties allObjects = object.getObjectRepository();
UIOperation operation = new UIOperation(webdriver);
//Read keyword sheet
Sheet gtupapersSheet = file.readExcel(System.getProperty("user.dir")+"\\","TestCase.xlsx" , "KeywordFramework");
//Find number of rows in excel file
    int rowCount = gtupapersSheet.getLastRowNum()-gtupapersSheet.getFirstRowNum();
    //Create a loop over all the rows of excel file to read it
    for (int i = 1; i < rowCount+1; i++) {
        //Loop over all the rows
        Row row = gtupapersSheet.getRow(i);
        //Check if the first cell contain a value, if yes, That means it is the new testcase name
        if(row.getCell(0).toString().length()==0){
        //Print testcase detail on console
            System.out.println(row.getCell(1).toString()+"----"+ row.getCell(2).toString()+"----"+
            row.getCell(3).toString()+"----"+ row.getCell(4).toString());
        //Call perform function to perform operation on UI
            operation.perform(allObjects, row.getCell(1).toString(), row.getCell(2).toString(),
                row.getCell(3).toString(), row.getCell(4).toString());
     }
        else{
            //Print the new testcase name when it started
                System.out.println("New Testcase->"+row.getCell(0).toString() +" Started");
            }
        }
    }
}

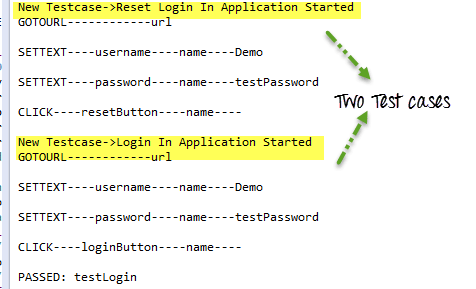

After execution, output will look like -

Download the Selenium Project Files for the Demo in this Tutorial

Here for keywords, we will use Excel files to maintain test cases, and for test data, we can use data, provider of Testng framework.

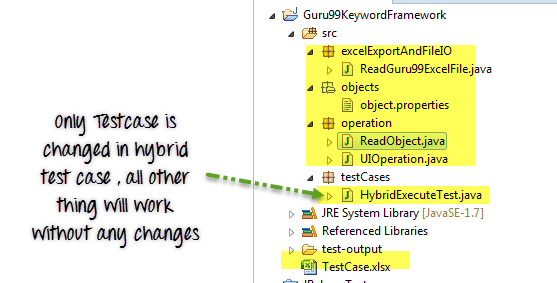

Here in our hybrid framework, we don't need to change anything in Keyword driven framework, here we just need to replace ExecuteTest.java file with HybridExecuteTest.java file.

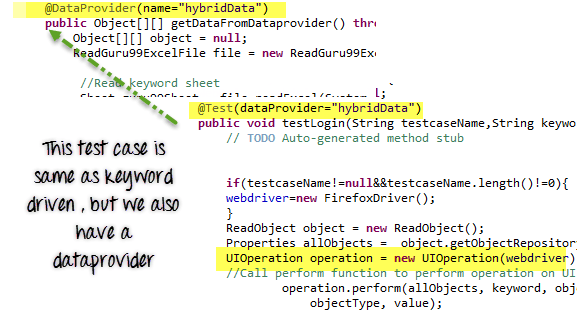

This HybridExecuteTest file has all the code for keyword driven with data provider concept.

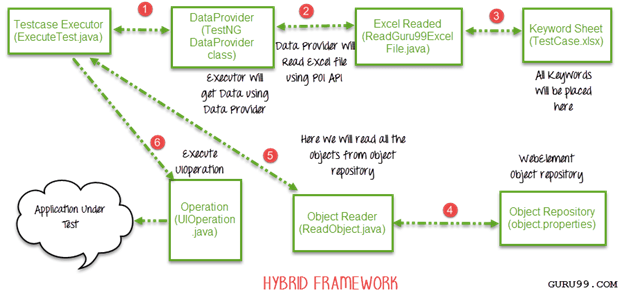

The complete pictorial representation of hybrid framework will look like

HybridExecuteTest.java

package testCases;
import java.io.IOException;
import java.util.Properties;
import operation.ReadObject;
import operation.UIOperation;
import org.apache.poi.ss.usermodel.Row;
import org.apache.poi.ss.usermodel.Sheet;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.firefox.FirefoxDriver;
import org.testng.annotations.DataProvider;
import org.testng.annotations.Test;
import excelExportAndFileIO.ReadgtupapersExcelFile;
public class HybridExecuteTest {
    WebDriver webdriver = null;
@Test(dataProvider="hybridData")
    public void testLogin(String testcaseName,String keyword,String objectName,String objectType,String value) throws Exception {
        // TODO Auto-generated method stub

    if(testcaseName!=null&&testcaseName.length()!=0){
    webdriver=new FirefoxDriver();
    }
ReadObject object = new ReadObject();
Properties allObjects = object.getObjectRepository();
UIOperation operation = new UIOperation(webdriver);
    //Call perform function to perform operation on UI
            operation.perform(allObjects, keyword, objectName,
                objectType, value);

    }
@DataProvider(name="hybridData")
    public Object[][] getDataFromDataprovider() throws IOException{
    Object[][] object = null;
    ReadgtupapersExcelFile file = new ReadgtupapersExcelFile();
//Read keyword sheet
Sheet gtupapersSheet = file.readExcel(System.getProperty("user.dir")+"\\","TestCase.xlsx" , "KeywordFramework");
//Find number of rows in excel file
    int rowCount = gtupapersSheet.getLastRowNum()-gtupapersSheet.getFirstRowNum();
    object = new Object[rowCount][5];
    for (int i = 0; i < rowCount; i++) {
        //Loop over all the rows
        Row row = gtupapersSheet.getRow(i+1);
        //Create a loop to print cell values in a row
        for (int j = 0; j < row.getLastCellNum(); j++) {
            //Print excel data in console
            object[i][j] = row.getCell(j).toString();
        }
    }
    System.out.println("");
     return object;
    }
}

Summary:

• We can create three types of test framework using Selenium WebDriver.
• These are Data Driven, Keyword Driven, and Hybrid test framework.
• We can achieve Data-driven framework using TestNG's data provider.
• In Keyword driven framework, keywords are written in some external files like excel file and java code will call this file and execute test cases.
• The hybrid framework is a mix of keyword driven and data driven framework.

Download the Selenium Project Files for the Demo in this Tutorial
