How to Download & Install CUCUMBER in Windows

Cucumber installation could be tiresome but its relatively easy.

Here is a roadmap of components that need to be installed to make Cucumber work

• Install Ruby and DevKit
• Install Cucumber
• Install IDE RubyMine
• Install watir-webdriver
• First Cucumber Script

Install Ruby and DevKit

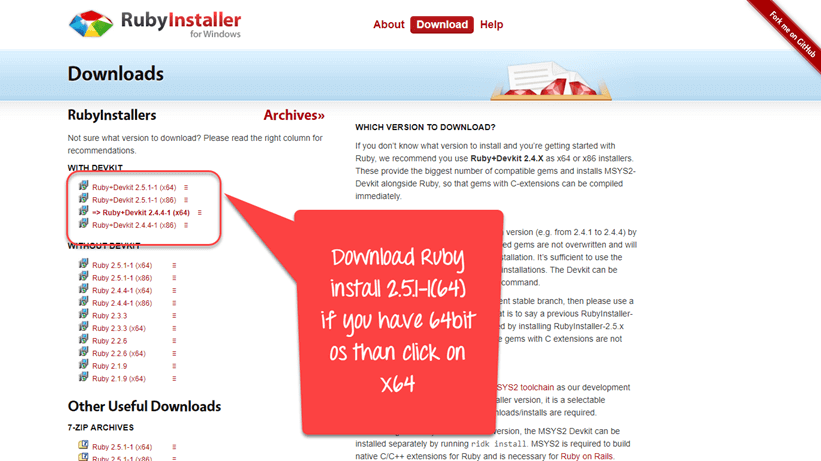

Step1) Got to https://rubyinstaller.org/downloads/

Step 2) Open the downloaded file.

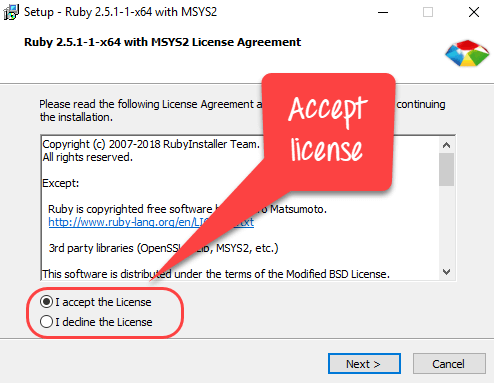

1. Accept license
2. Click on Next button

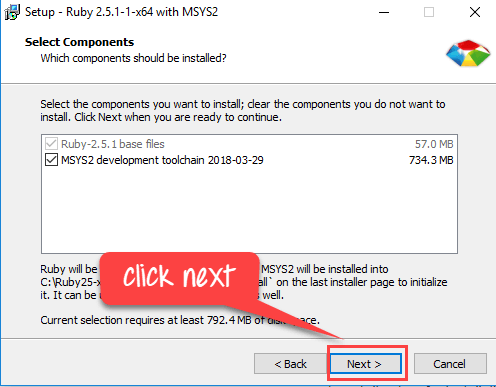

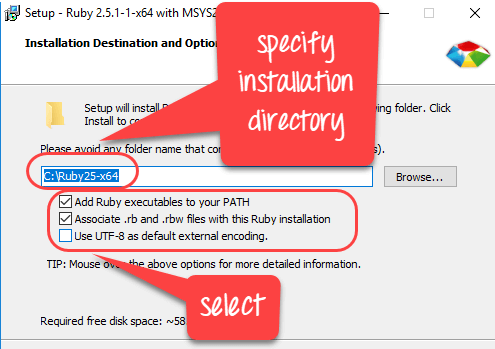

Step 3) In next screen.

1. Select your Installation Directory
2. Select all Options
3. Click Install

Step 4) In the following screen, Click on Next

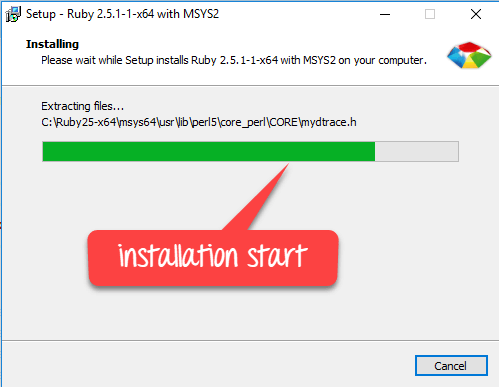

Step 5) Wait for installation to complete.

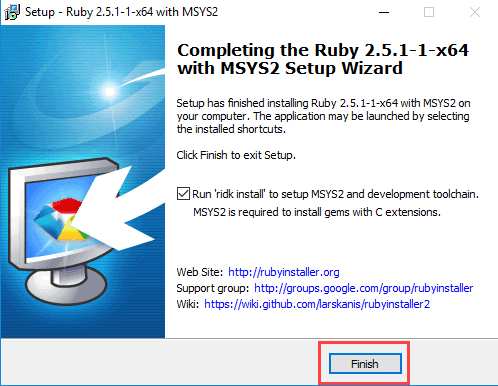

Step 6) Click Finish

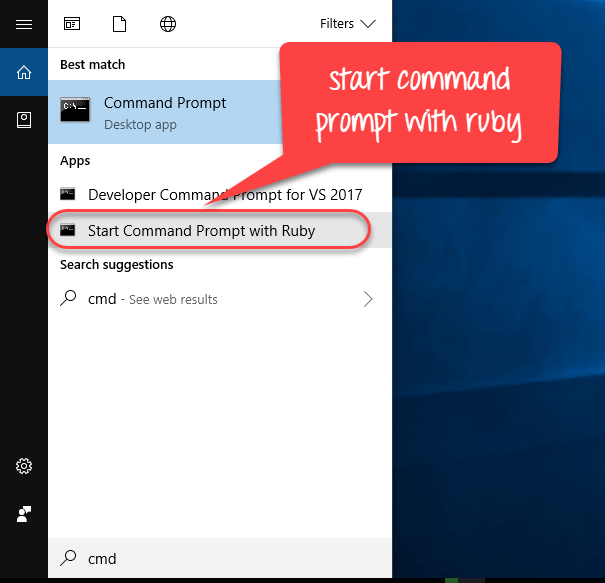

Step 7) Once installation is complete, Lets Run Ruby!

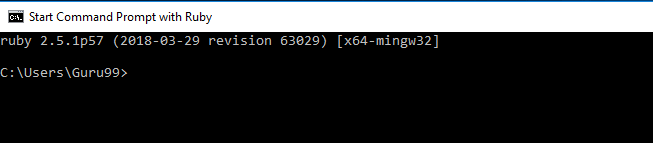

Step 8) You will see Ruby Command prompt similar to Windows cmd.

Install Cucumber

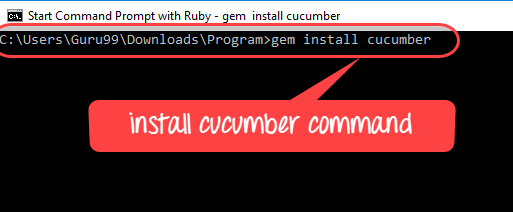

Step 1) Type in Ruby cmd "gem install cucumber". This command will download and install Cucumber at command line itself

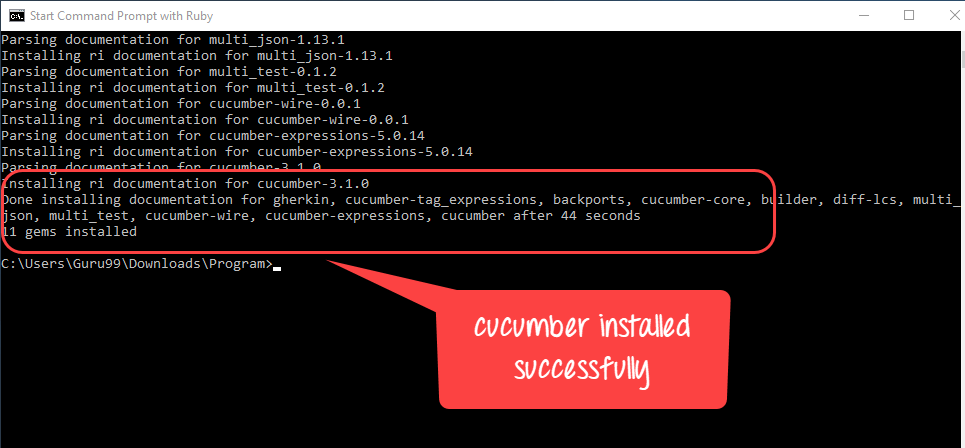

After few seconds cucumber installation procedure has been start

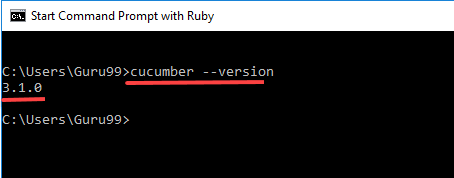

Step 2) To verify cucumber is installed successfully or not just type "cucumber –version"

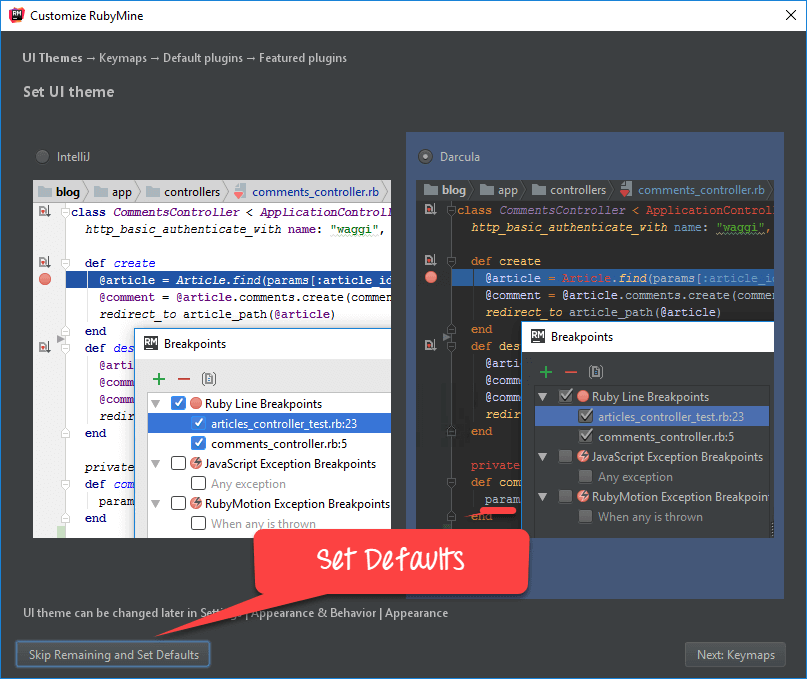

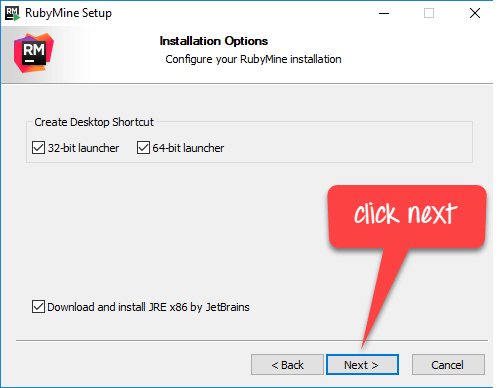

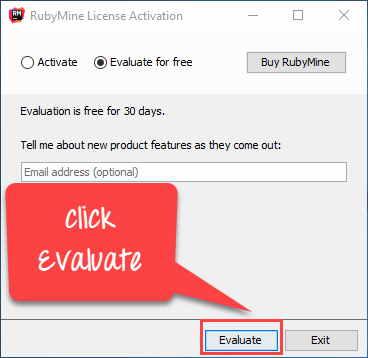

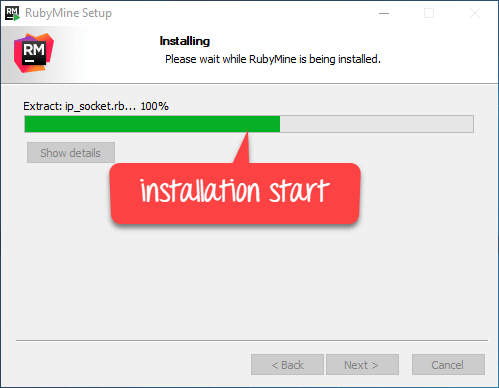

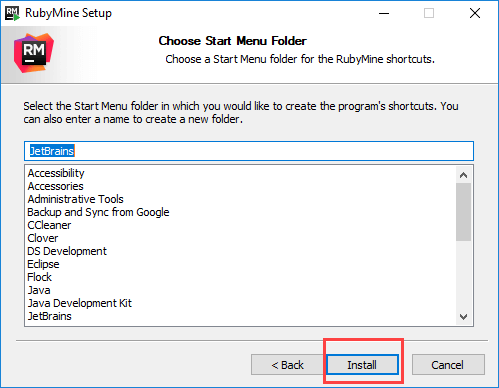

Install IDE RubyMine

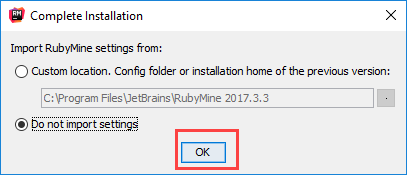

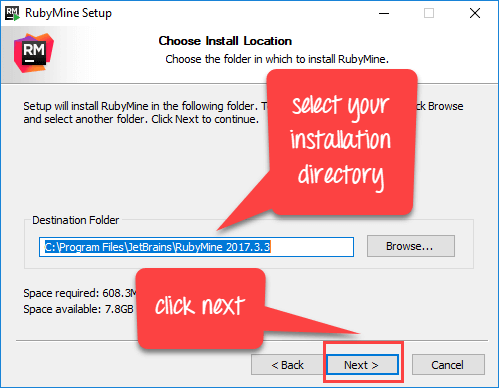

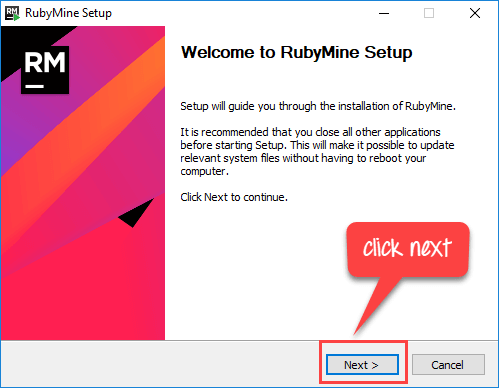

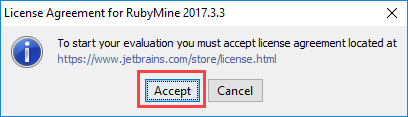

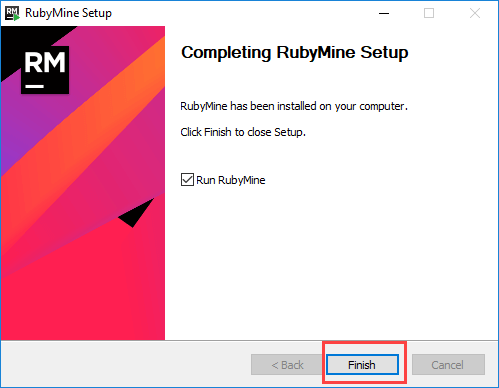

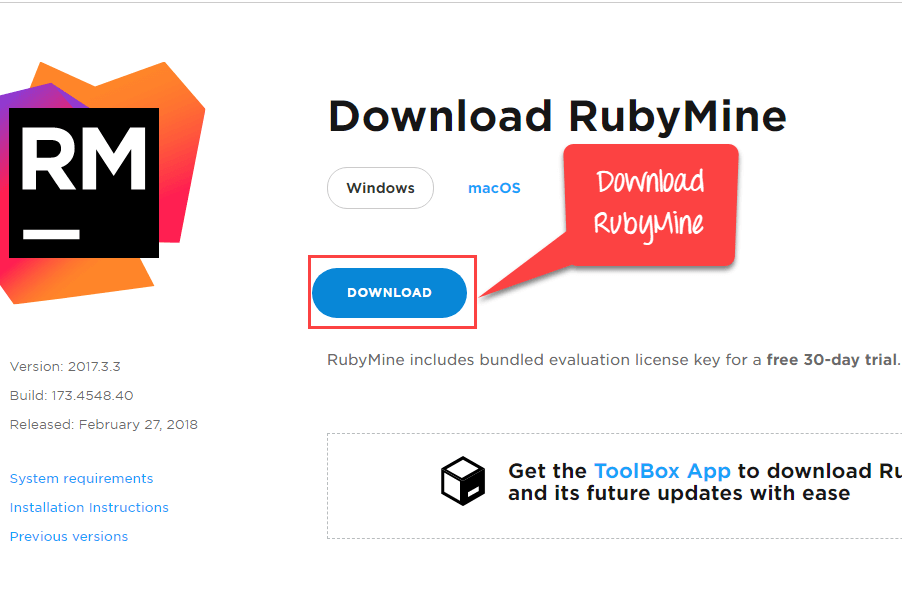

Step 1)

Step 2)

Step 3)

Step 4)

Step 5)

Step 6)

Step 7)

Step 8)

Step 9)

Step 10)

Step 11)

Step 12)

Install watir-webdriver

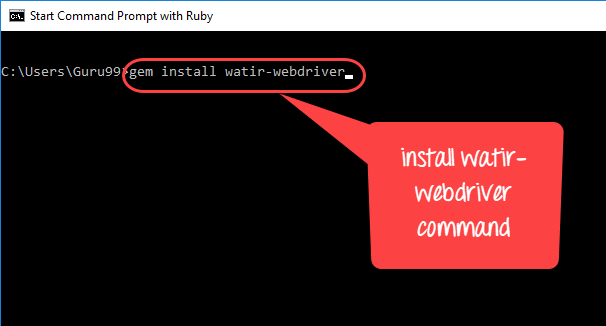

Step 1) Click on "Start Command Prompt With ruby" and install command "gem install watir-webdriver"

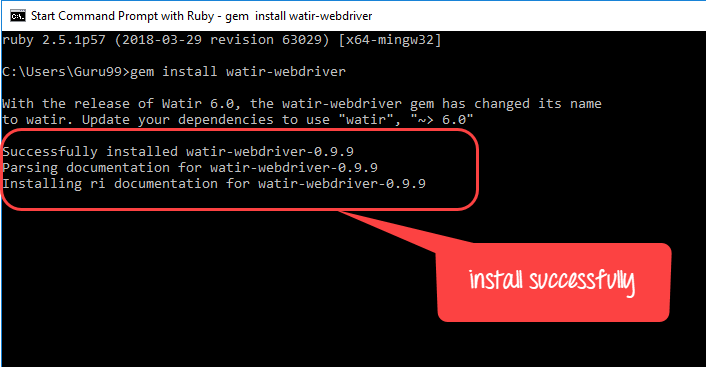

Step 2) watir-webdriver install successfully

First Cucumber Script

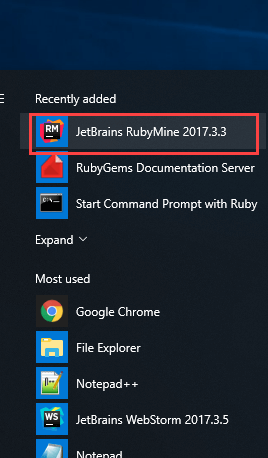

Step 1) Open RubyMine Editor via windows start menu

You will See Rubymine Dashboard as below

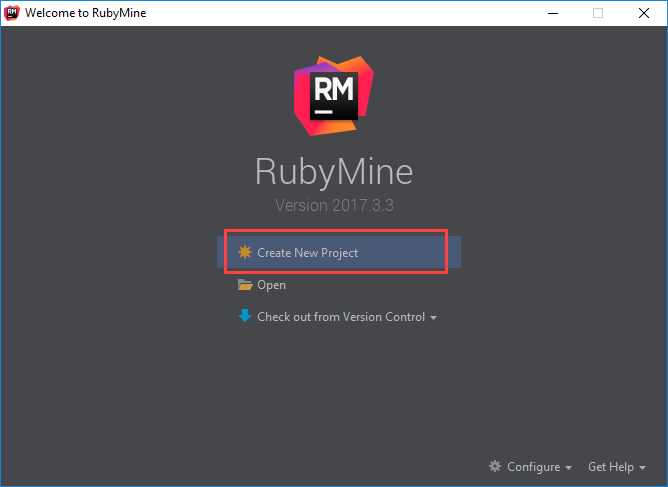

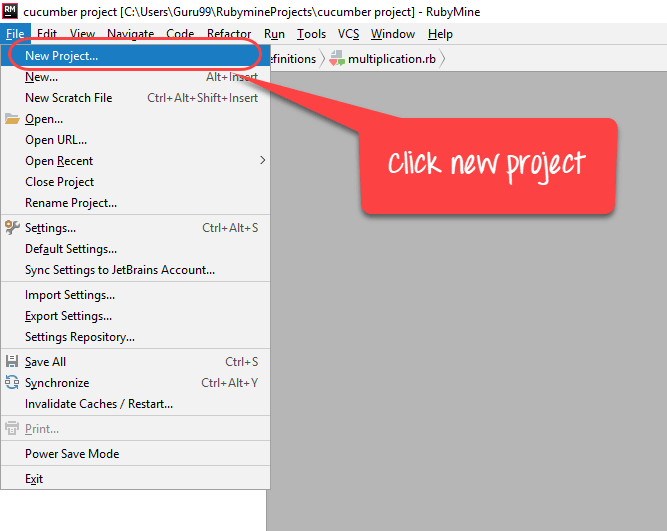

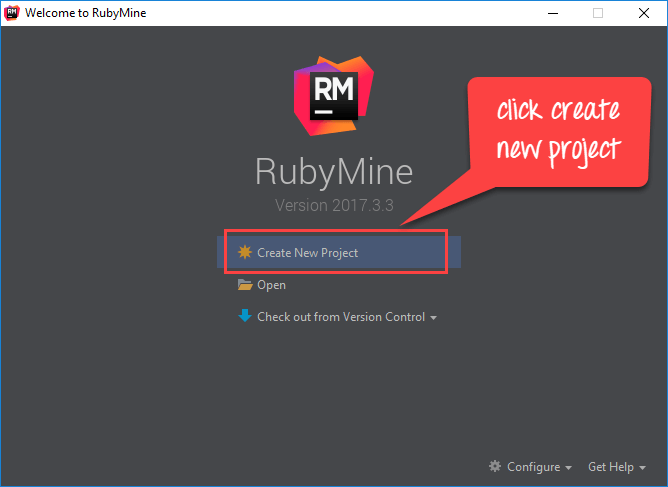

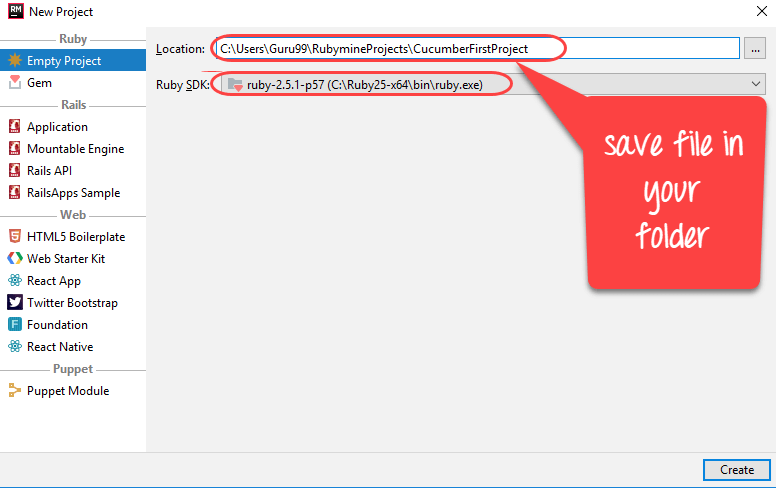

Step 2) Create a new project in Rubymine editor

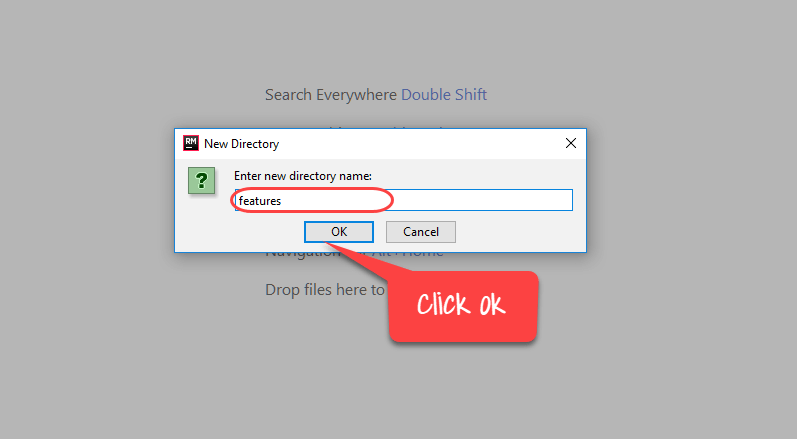

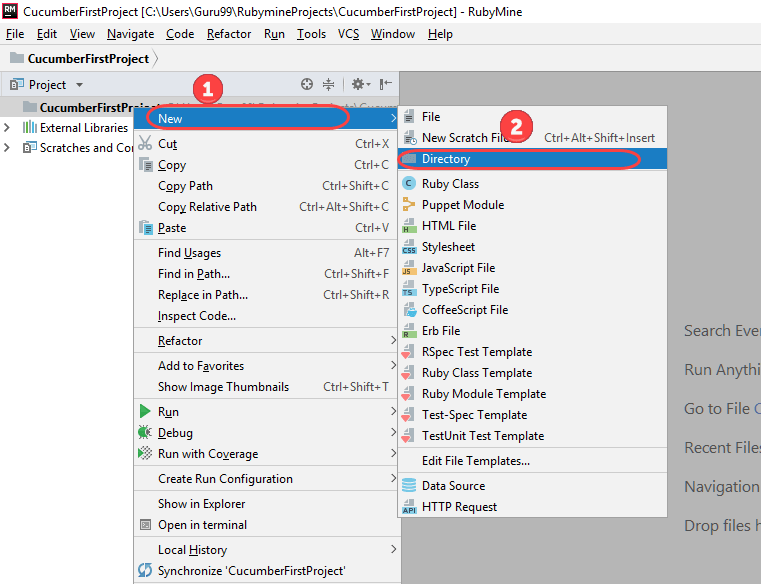

Step 3) create a file directory

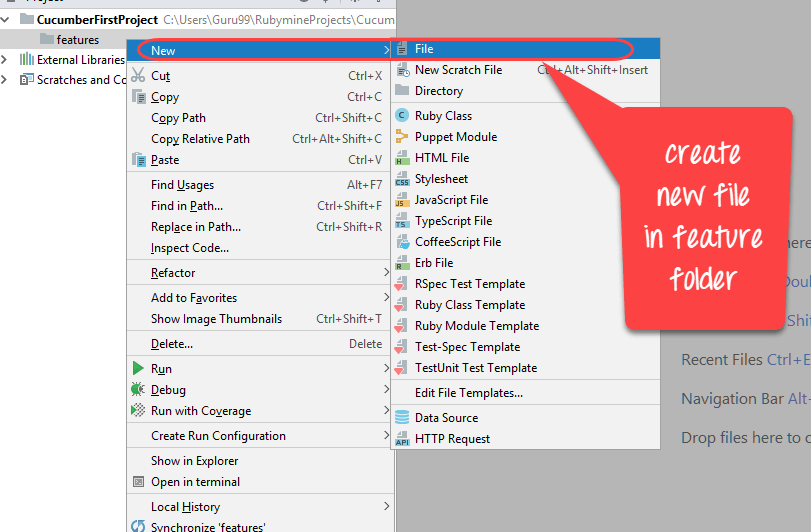

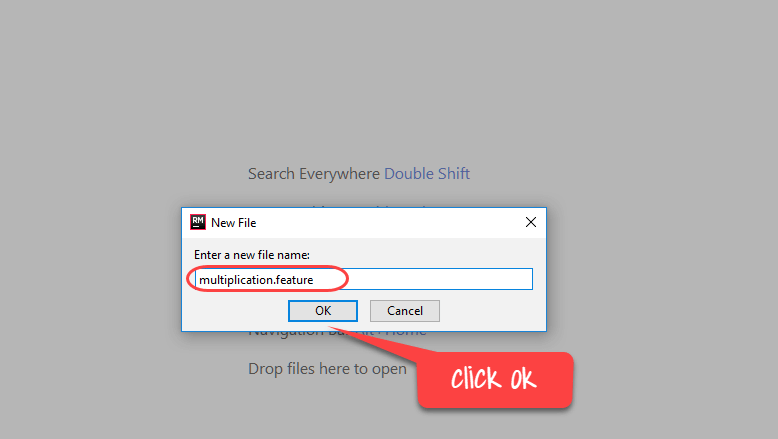

Step 4) create and Save File in "yourfolder/features/" with name "yourfilename.feature"

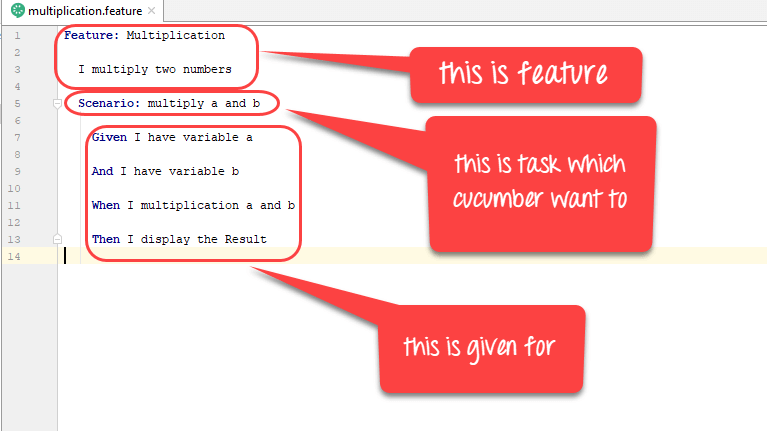

Step 5) To execute our scenario, save the following commands in the Feature File

Code:

Feature: Multiplication
I multiply two numbers
	Scenario: multiply a and b
		Given I have variable a
		And I have variable b
		When I multiplication a and b
		Then I display the Result

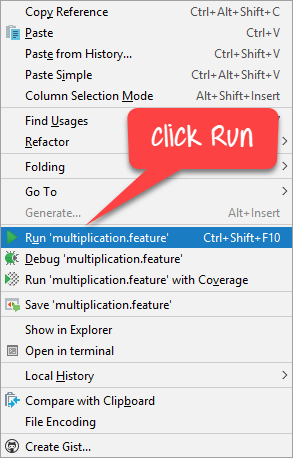

Step 6) Now lets Run our First feature file.!

Click on "Start Command Prompt With ruby"

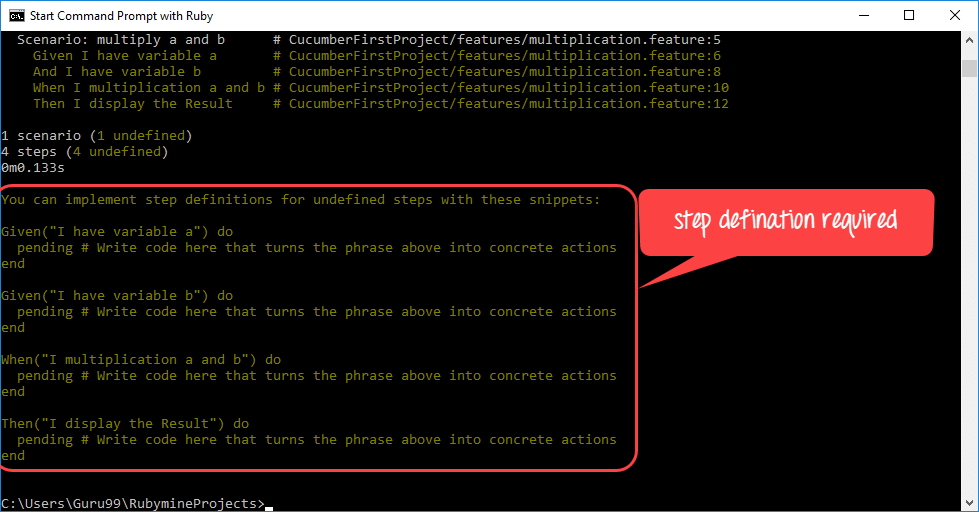

It will look like this!

Step 7) Lets create step definition file for our Feature File!

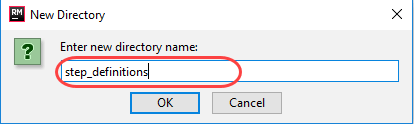

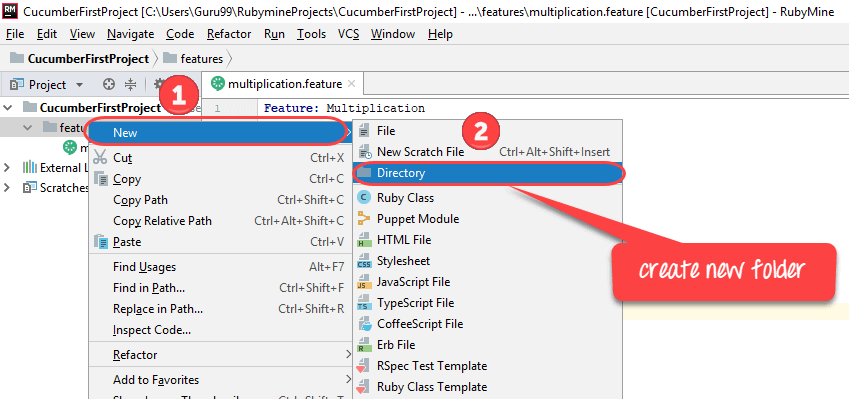

Create a new folder in Rubymine editor

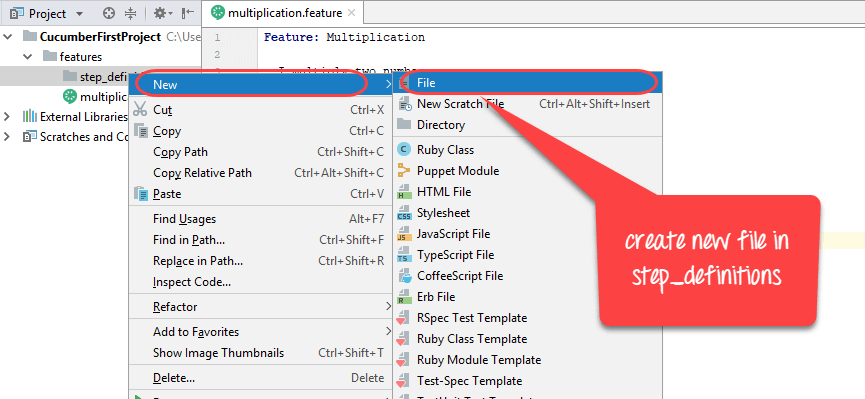

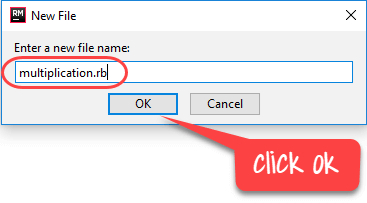

Step 8) Save File As below in "yourfolder/features/step_definititons" with name test_step.rb

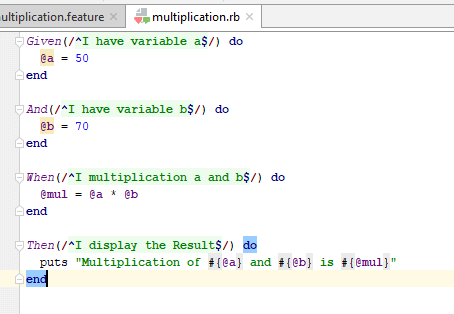

Step 9) Write the following code into the step file

Code :

Given(/^I have variable a$/) do
@a = 50
end

And(/^I have variable b$/) do
@b = 70
end

When(/^I multiplication a and b$/) do
@mul = @a * @b
end

Then(/^I display the Result$/) do
puts "Multiplication of #{@a} and #{@b} is #{@mul}"
end

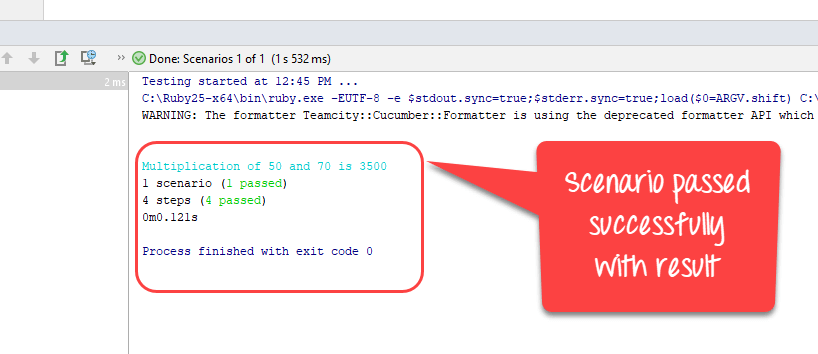

Step 10) Now, again run our feature file:

The result is
