Database Testing using Selenium: Step by Step Guide

Details

Selenium Webdriver is limited to Testing your applications using Browser. To use Selenium Webdriver for Database Verification you need to use the JDBC ("Java Database Connectivity").

JDBC (Java Database Connectivity) is a SQL level API that allows you to execute SQL statements. It is responsible for the connectivity between the Java Programming language and a wide range of databases. The JDBC API provides the following classes and interfaces

In this tutorial, you will learn

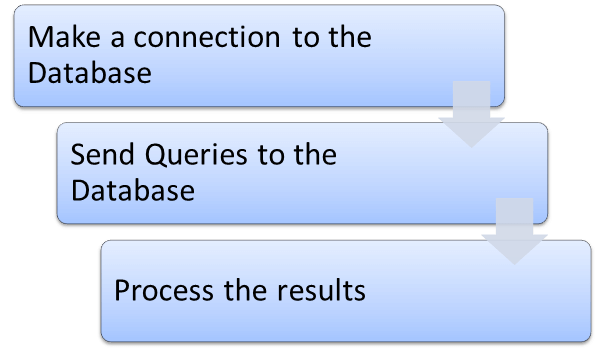

In order to test your Database using Selenium, you need to observe the following 3 steps

Database Testing using Selenium: Step by Step Guide

1) Make a connection to the Database

In order to make a connection to the database the syntax is

DriverManager.getConnection(URL, "userid", "password" )

Here,

And the code to create connection looks like

Connection con = DriverManager.getConnection(dbUrl,username,password);
You also need to load the JDBC Driver using the code


Class.forName("com.mysql.jdbc.Driver");

2) Send Queries to the Database

Once connection is made, you need to execute queries.

You can use the Statement Object to send queries.

Statement stmt = con.createStatement();

Once the statement object is created use the executeQuery method to execute the SQL queries

stmt.executeQuery(select *  from employee;);

3) Process the results

Results from the executed query are stored in the ResultSet Object.

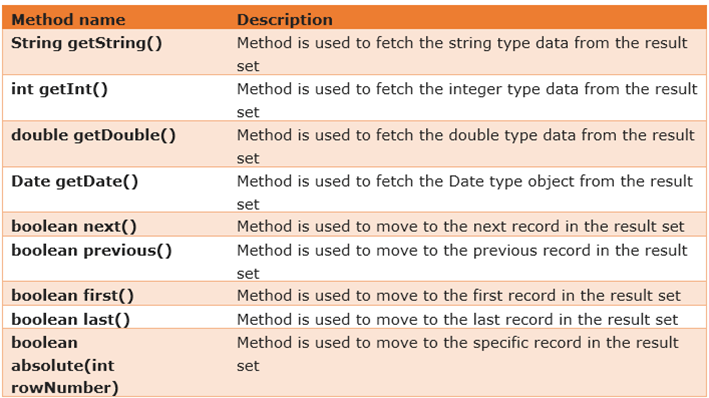

Java provides loads of advance methods to process the results. Few of the methods are listed below

Database Testing using Selenium: Step by Step Guide

Example of Database Testing with Selenium

Step 1) Install MySQL Server and MySQL Workbench

Check out the complete guide to Mysql & Mysql Workbench here

While installing MySQL Server, please note the database

It will be required in further steps.

MySQL Workbench makes it easy to administer the database without the need to code SQL. Though, you can also use the MySQL Terminal to interact with the database.

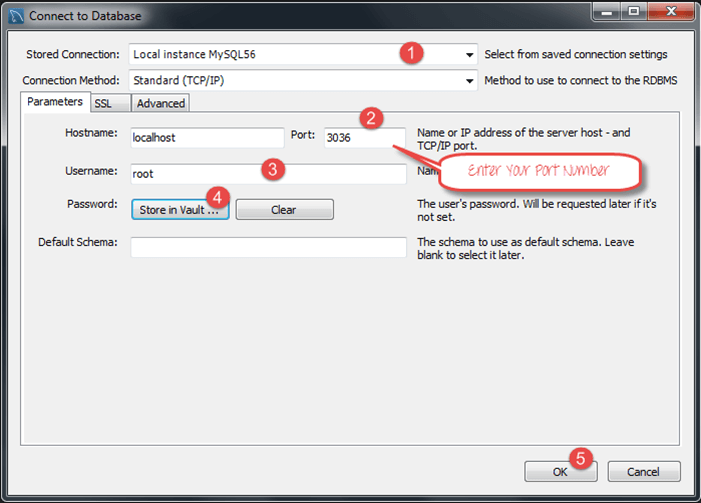

Step 2) In MySQL WorkBench, connect to your MySQL Server

Database Testing using Selenium: Step by Step Guide

In the next screen,

  1. Select Local Instance of MySQL
  2. Enter Port Number
  3. Enter Username
  4. Enter Password
  5. Click OK

Database Testing using Selenium: Step by Step Guide

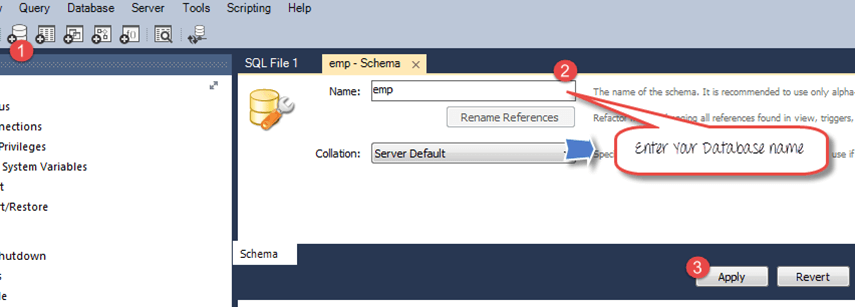

Step 3) To Create Database,

  1. Click create Schema Button
  2. Enter Name of Schema/Database
  3. Click Apply

Database Testing using Selenium: Step by Step Guide

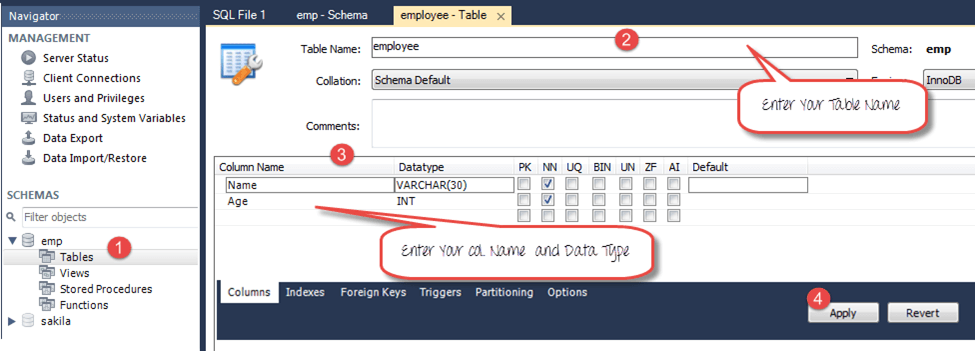

Step 4) In the navigator menu,

  1. Click on Tables, beneath the emp database
  2. Enter Table name as employee
  3. Enter Fields as Name and Age
  4. Click Apply

Database Testing using Selenium: Step by Step Guide

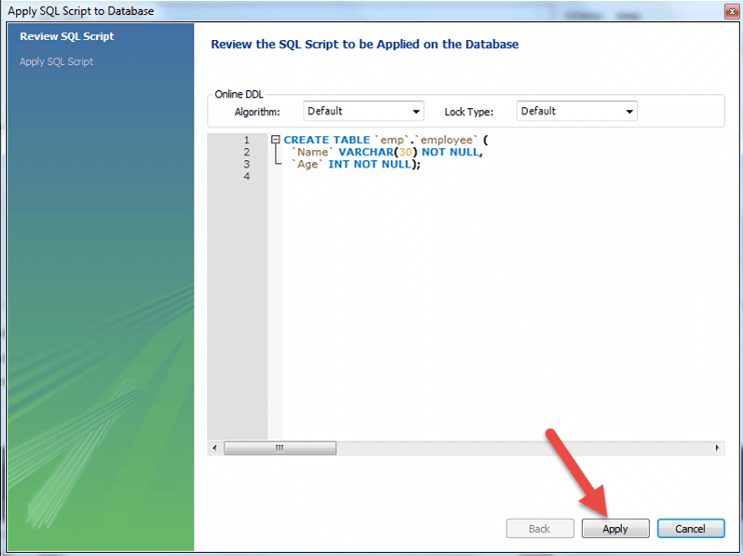

You will see the following pop-up. Click Apply

Database Testing using Selenium: Step by Step Guide

Step 5) We will create following data

Name

Age

Top

25

Nick

36

Bill

47

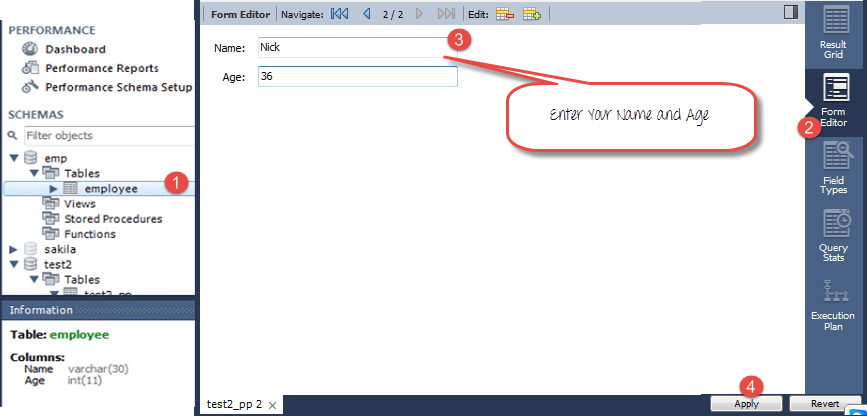

To create data into the Table

  1. In navigator, select the employee table
  2. In right pane, click Form Editor
  3. Enter Name and Age
  4. Click Apply

Database Testing using Selenium: Step by Step Guide

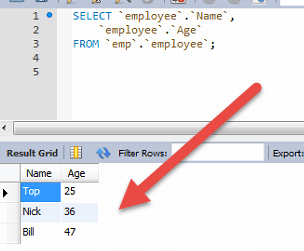

Repeat the process until all data is created

Database Testing using Selenium: Step by Step Guide

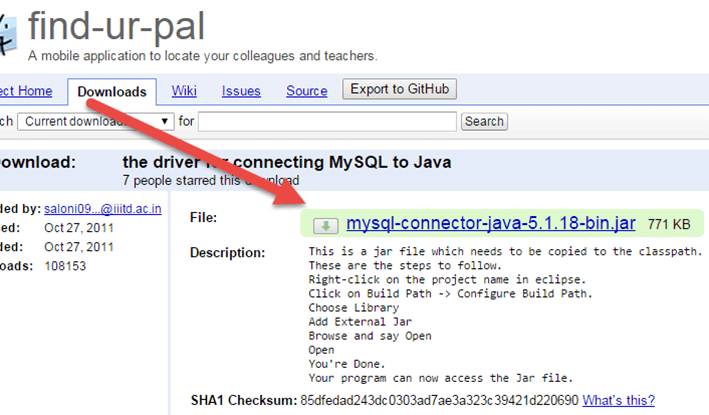

Step 6) Download the MySQL JDBC connector here

Database Testing using Selenium: Step by Step Guide

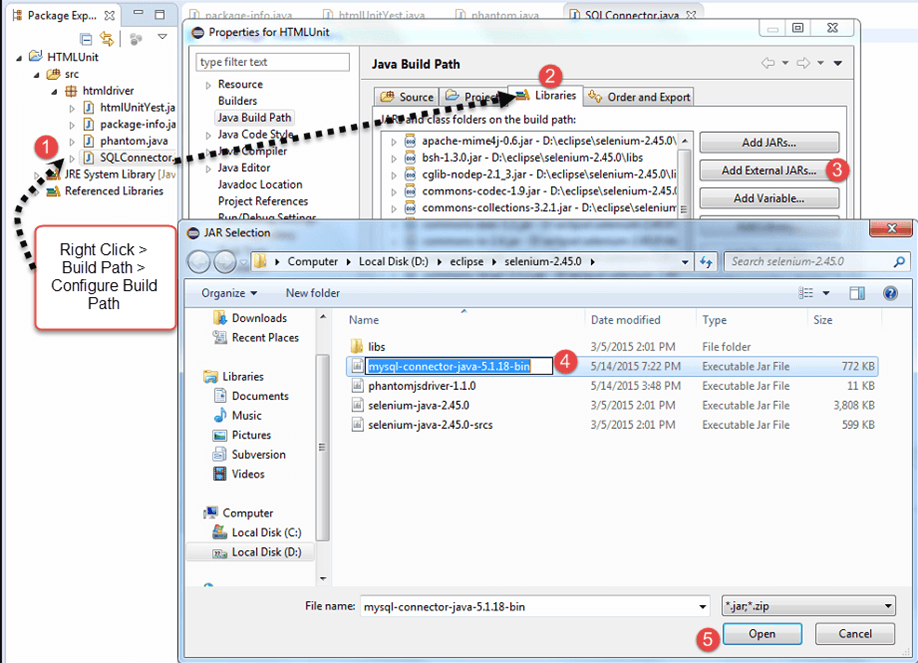

Step 7) Add the downloaded Jar to your Project

  1. Right click on your Java File. Then click on Build Pathà Configure build path
  2. Select the libraries
  3. Click on add external JARs
  4. You can see MySQL connector java in your library
  5. Click on open to add it to the project

Database Testing using Selenium: Step by Step Guide

Step 8) Copy the following code into the editor

Package  htmldriver;
import  java.sql.Connection;
import  java.sql.Statement;
import  java.sql.ResultSet;
import  java.sql.DriverManager;
import  java.sql.SQLException;
public class  SQLConnector {
    	public static void  main(String[] args) throws  ClassNotFoundException, SQLException {
				//Connection URL Syntax: "jdbc:mysql://ipaddress:portnumber/db_name"
                String dbUrl = "jdbc:mysql://localhost:3036/emp";

				//Database Username
				String username = "root";

				//Database Password
				String password = "gtupapers";

				//Query to Execute
				String query = "select *  from employee;";

         	    //Load mysql jdbc driver
           	    Class.forName("com.mysql.jdbc.Driver");

           		//Create Connection to DB
            	Connection con = DriverManager.getConnection(dbUrl,username,password);

          		//Create Statement Object
        	   Statement stmt = con.createStatement();

       			// Execute the SQL Query. Store results in ResultSet
         		ResultSet rs= stmt.executeQuery(query);

         		// While Loop to iterate through all data and print results
				while (rs.next()){
			        		String myName = rs.getString(1);
                            String myAge = rs.getString(2);
                            System. out.println(myName+"  "+myAge);
                    }
      			 // closing DB Connection
      			con.close();
		}
}

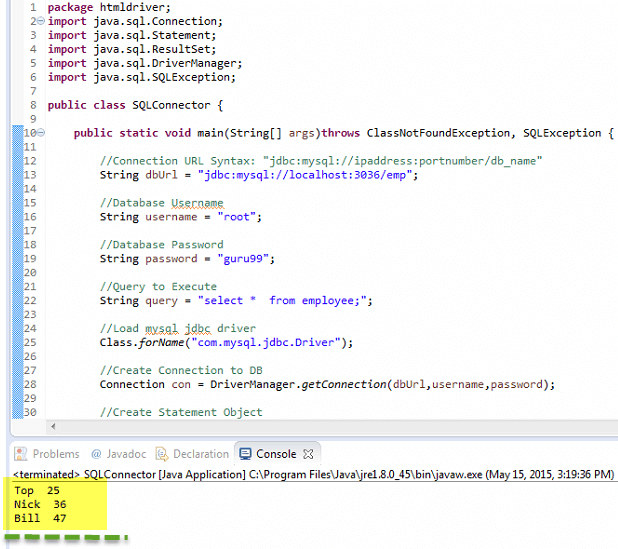

Step 8) Execute the code, and check the output

Database Testing using Selenium: Step by Step Guide

Summary of Steps for Selenium Database Testing

Step 1) Make a connection to the Database using method.

DriverManager.getConnection(URL, "userid", "password")

Step 2) Create Query to the Database using the Statement Object.

Statement stmt = con.createStatement();

Step 3) Send the query to database using execute query and store the results in the ResultSet object.

ResultSet rs = stmt.executeQuery(select * from employee;);

Java provides lots of built-in methods to process the> SQL Output using the ResultSet Object
