How to Create an InfoObject Catalog in SAP BI/BW

Step 1)

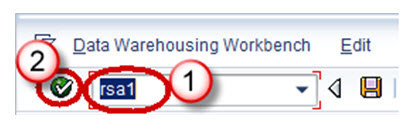

1. Go to transaction code RSA1 to go to the Data Warehouse Workbench.
2. Click the OK button.

Step 2)

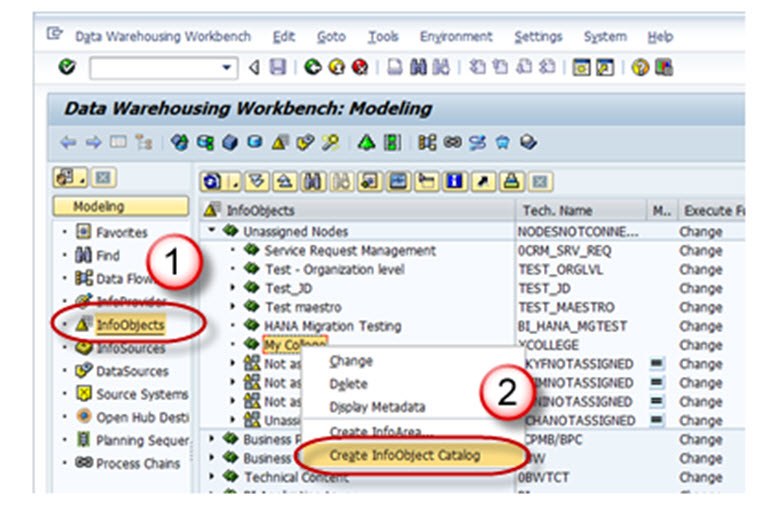

1. Navigate to Modeling -> Infoobjects
2. Right click on the Info Area and choose the option “Create InfoObject Catalog” as shown below

Step 3)

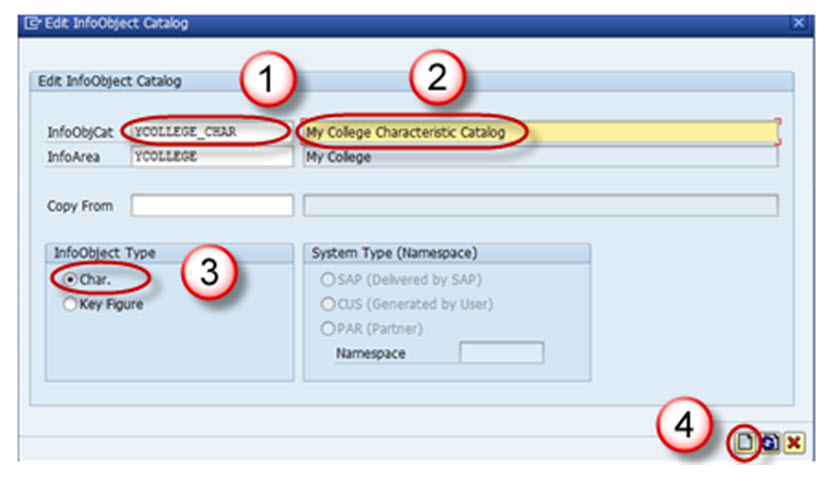

1.  Enter the Technical name of the InfoObject Catalog.
2.  Enter the Description of the InfoObject Catalog.
3. Click in the “Characteristic InfoObject” option button. This is a characteristic InfoObject Catalog. Click the Keyfigure option button. Then a Keyfigure InfoObject Catalog would be created.
4. Click on the create button.

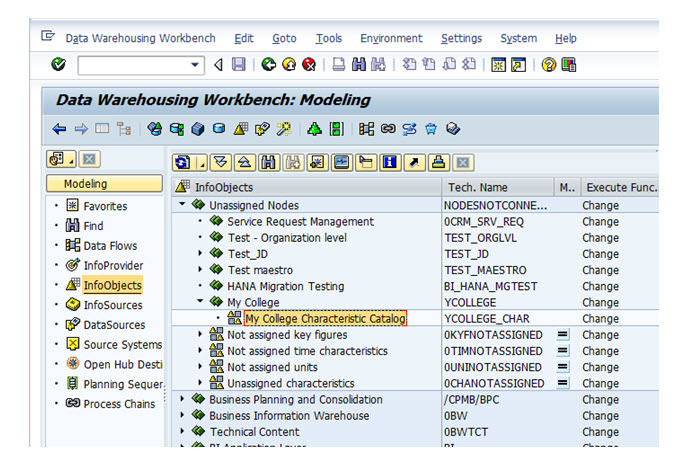

Save and Activate the InfoObject Catalog. The InfoObject Catalog created appears as shown below.
