Select the tar.gz file ( not the file with src) Once a download is complete, navigate to the directory containing the tar file Enter,
sudo tar xzf hadoop-2.2.0.tar.gz
Now, rename hadoop-2.2.0 as hadoop
sudo mv hadoop-2.2.0 hadoop
sudo chown -R hduser_:hadoop_ hadoop
Step 1) Modify ~/.bashrc file
Add following lines to end of file ~/.bashrc
#Set HADOOP_HOME
export HADOOP_HOME=<Installation Directory of Hadoop>
#Set JAVA_HOME
export JAVA_HOME=<Installation Directory of Java>
# Add bin/ directory of Hadoop to PATH
export PATH=$PATH:$HADOOP_HOME/bin
Now, source this environment configuration using below command
. ~/.bashrc
Step 2) Configurations related to HDFS
Set JAVA_HOME inside file $HADOOP_HOME/etc/hadoop/hadoop-env.sh With There are two parameters in $HADOOP_HOME/etc/hadoop/core-site.xml which need to be set-
1.'hadoop.tmp.dir' - Used to specify a directory which will be used by Hadoop to store its data files.
2. 'fs.default.name' - This specifies the default file system.

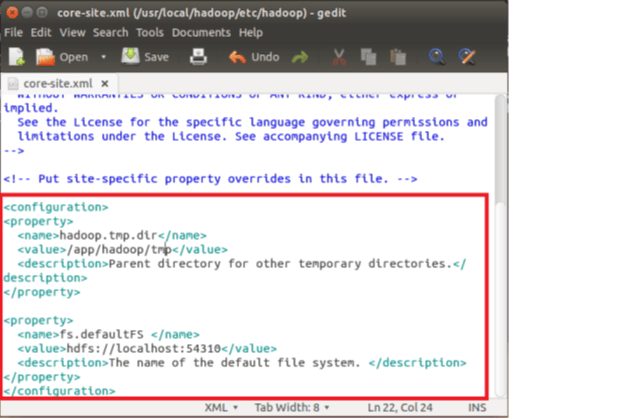

To set these parameters, open core-site.xml
sudo gedit $HADOOP_HOME/etc/hadoop/core-site.xml
Copy below line in between tags <configuration></configuration>
<property>
<name>hadoop.tmp.dir</name>
<value>/app/hadoop/tmp</value>
<description>Parent directory for other temporary directories.</description>
</property>
<property>
<name>fs.defaultFS </name>
<value>hdfs://localhost:54310</value>
<description>The name of the default file system. </description>
</property>
Navigate to the directory $HADOOP_HOME/etc/Hadoop Now, create the directory mentioned in core-site.xml
sudo mkdir -p <Path of Directory used in above setting>
Grant permissions to the directory
sudo chown -R hduser_:Hadoop_ <Path of Directory created in above step>
sudo chmod 750 <Path of Directory created in above step>
Step 3) Map Reduce Configuration
Before you begin with these configurations, lets set HADOOP_HOME path

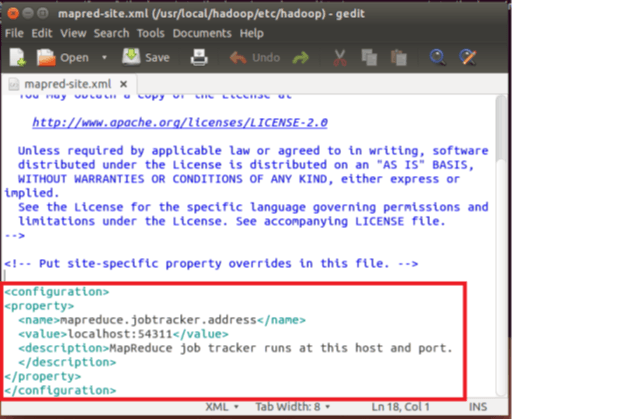

Add below lines of setting in between tags <configuration> and </configuration>
<property>
<name>mapreduce.jobtracker.address</name>
<value>localhost:54311</value>
<description>MapReduce job tracker runs at this host and port.
</description>
</property>
Open $HADOOP_HOME/etc/hadoop/hdfs-site.xml as below,
sudo gedit $HADOOP_HOME/etc/hadoop/hdfs-site.xml
Add below lines of setting between tags <configuration> and </configuration>
sudo mkdir -p <Path of Directory used in above setting>
sudo mkdir -p /home/hduser_/hdfs
sudo chown -R hduser_:hadoop_ <Path of Directory created in above step>
sudo chown -R hduser_:hadoop_ /home/hduser_/hdfs
sudo chmod 750 <Path of Directory created in above step>
sudo chmod 750 /home/hduser_/hdfs
Step 4) Before we start Hadoop for the first time, format HDFS using below command
$HADOOP_HOME/bin/hdfs namenode -format
Step 5) Start Hadoop single node cluster using below command

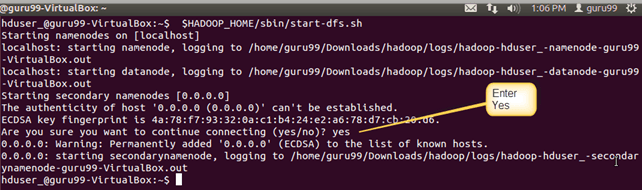

$HADOOP_HOME/sbin/start-dfs.sh
An output of above command
$HADOOP_HOME/sbin/start-yarn.sh
Using 'jps' tool/command, verify whether all the Hadoop related processes are running or not. If Hadoop has started successfully then an output of jps should show NameNode, NodeManager, ResourceManager, SecondaryNameNode, DataNode.
Step 6) Stopping Hadoop
$HADOOP_HOME/sbin/stop-dfs.sh
