Mutation Testing

Mutation Testing is a type of software testing in which certain statements of the source code are changed/mutated to check if the test cases are able to find errors in source code. The goal of Mutation Testing is ensuring the quality of test cases in terms of robustness that it should fail the mutated source code.

The changes made in the mutant program should be kept extremely small that it does not affect the overall objective of the program. Mutation Testing is also called Fault-based testing strategy as it involves creating a fault in the program and it is a type of White Box Testing which is mainly used for Unit Testing.

Mutation was originally proposed in 1971 but lost fervor due to the high costs involved. Now, again it has picked steam and is widely used for languages such as Java and XML.

In this tutorial, you will learn-

How to execute Mutation Testing?

Mutation Testing: Complete Guide

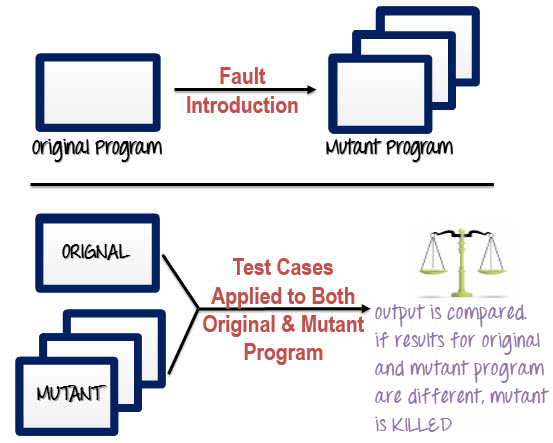

Following are the steps to execute mutation testing(mutation analysis):

Step 1: Faults are introduced into the source code of the program by creating many versions called mutants. Each mutant should contain a single fault, and the goal is to cause the mutant version to fail which demonstrates the effectiveness of the test cases.

Step 2: Test cases are applied to the original program and also to the mutant program. A Test Case should be adequate, and it is tweaked to detect faults in a program.

Step 3: Compare the results of an original and mutant program.

Step 4: If the original program and mutant programs generate the different output, then that the mutant is killed by the test case. Hence the test case is good enough to detect the change between the original and the mutant program.

Step 5: If the original program and mutant program generate the same output, Mutant is kept alive. In such cases, more effective test cases need to be created that kill all mutants.

How to Create Mutant Programs?

Mutation Testing: Complete Guide

A mutation is nothing but a single syntactic change that is made to the program statement. Each mutant program should differ from the original program by one mutation.

Original Program Mutant Program
If (x>y)

Print "Hello"

Else

Print "Hi"

 If(x<y)

Print "Hello"

Else

Print "Hi"

What to change in a Mutant Program?

There are several techniques that could be used to generate mutant programs. Let's look at them

Operand replacement operators Expression Modification Operators Statement modification Operators
Replace the operand with another operand (x with y or y with x) or with the constant value. Replace an operator or insertion of new operators in a program statement. Programmatic statements are modified to create mutant programs.
Example-

If(x>y) replace x and y values

If(5>y) replace x by constant 5

 Example-

If(x==y)

We can replace == into >= and have mutant program as

If(x>=y) and inserting ++ in the statement

If(x==++y)		 Example-

Delete the else part in an if-else statement

Delete the entire if-else statement to check how a program behaves

Some of sample mutation operators:
  • GOTO label replacement
  • Return statement replacement
  • Statement deletion
  • Unary operator insertion (Like - and ++)
  • Logical connector replacement
  • Comparable array name replacement
  • Removing of else part in the if-else statement
  • Adding or replacement of operators
  • Statement replacement by changing the data
  • Data Modification for the variables
  • Modification of data types in the program

Automation of Mutation Testing:

Mutation testing is extremely time consuming and complicated to execute manually. To speed up the process, it is advisable to go for automation tools. Automation tools reduce the cost of testing as well.

List of tools available -

Types of Mutation Testing

In Software Engineering, Mutation testing could be fundamentally categorized into 3 types– statement mutation, decision mutation, and value mutation.

  1. Statement Mutation - developer cut and pastes a part of a code of which the outcome may be a removal of some lines
  2. Value Mutation- values of primary parameters are modified
  3. Decision Mutation- control statements are to be changed

Mutation Score:

The mutation score is defined as the percentage of killed mutants with the total number of mutants.
