PostgreSQL Joins: Inner, Outer, Left, Right, Natural with Examples
- Details
What are PostgreSQL Joins?
PostgreSQL JOINs are used for retrieving data from more than one tables. With JOINs, it is possible for us to combine the SELECT and JOIN statements into a single statement. A JOIN condition is added to the statement, and all rows that meet the conditions are returned.
The values from different tables are combined based on common columns. The common column mostly is a primary key in the first table and a foreign key of the second table.
In this PostgreSQL tutorial, you will learn:
- What are PostgreSQL Joins?
- Types of Joins
- Inner Joins
- Outer Joins
- Using pgAdmin
- Inner Joins
- Outer Joins
Types of Joins
There are two JOIN types in PostgreSQL:
- Inner Joins
- Outer Join
Inner Joins
There are 3 types of inner joins:
- Theta join
- Natural join
- EQUI join
Theta Join
A theta join allows one to join two tables based on the condition that is represented by theta. Theta joins can work with all comparison operators. In most cases, the theta join is referred to as inner join.
The theta join is the most basic type of JOIN. It will return all rows from the tables where the JOIN condition is satisfied.
Syntax:
SELECT columns FROM table-1 INNER JOIN table-2 ON table-1.column = table-2.column;
Consider the following tables of the Demo database:

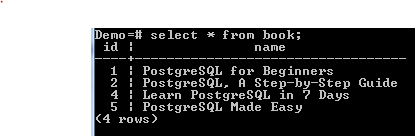

Book:
Price:
We want to see the name of each book and the corresponding Price. We can run the following command:
SELECT Book.name, Price.price FROM Book INNER JOIN Price ON Book.id = Price.id;
This will return the following:
Only 3 rows satisfied the join condition.
EQUI Join
The EQUI join provides us with a way of joining two tables based on primary key/foreign key relationship. For example:
SELECT * FROM Book JOIN Price ON Book.id = Price.id;

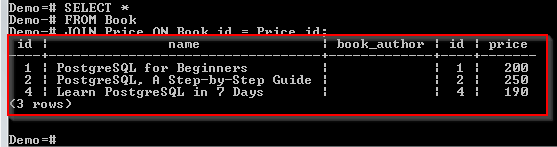

This will return the following:
Records have been returned from both tables based on the common columns, that is, the id column.
Natural Join
This type of join provides us with another way of writing an EQUI join. We can improve our previous example by adding the NATURAL keyword as shown below:
SELECT * FROM Book NATURAL JOIN Price;

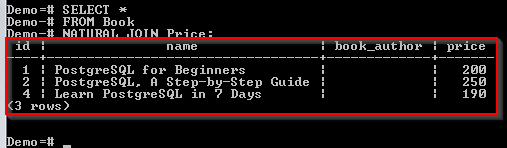

This will return the following:
Only one id column has been returned. The NATURAL JOIN was able to note that the id column is common in the two tables. Only one was returned.
Outer Joins
There are three types of outer JOINs in PostgreSQL:
- Left Outer Join.
- Right Outer Join.
- Full Outer Join
LEFT OUTER JOIN
The LEFT OUTER JOIN will return all rows in the table on the left-hand side and only the rows in the right-hand side table where the join condition has been satisfied.
Syntax:
SELECT columns FROM table-1 LEFT OUTER JOIN table-2 ON table-1.column = table-2.column;
We need to see the name of each book and the corresponding Price. We can run the following command:
SELECT Book.name, Price.price FROM Book LEFT JOIN Price ON Book.id = Price.id;

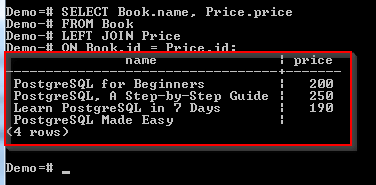

This returns the following:
All the 4 rows in the Book table have been returned. Only 3 rows from the Price table met the join condition. Hence they were returned. The last book has no corresponding price value.
RIGHT OUTER JOIN
The RIGHT OUTER JOIN returns all rows in the table on the right-hand side and rows in the table on the left-hand side where the join condition has been satisfied.
Syntax:
SELECT columns FROM table-1 RIGHT OUTER JOIN table-2 ON table-1.column = table-2.column;
For example:
SELECT Book.name, Price.price FROM Book RIGHT JOIN Price ON Book.id = Price.id;

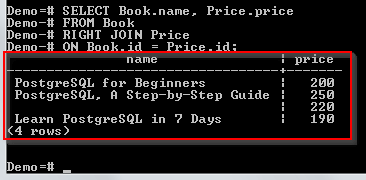

This returns the following:
All the rows in the Price table have been returned. Only the rows in the Book table that met the join condition were returned. The 3rd row has no value for name since no match was found.
Full Outer Join
This type of JOIN will return all rows in the table on the left-hand side and all rows in the table on the right-hand side with nulls where the join condition is not satisfied.
Syntax:
SELECT columns FROM table-1 FULL OUTER JOIN table-2 ON table-1.column = table-2.column;
For example:
SELECT Book.name, Price.price FROM Book FULL OUTER JOIN Price ON Book.id = Price.id;

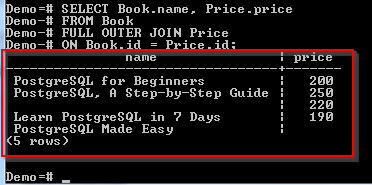

This returns the following:
All rows from all tables have been returned, with nulls where no match was found.
Using pgAdmin
The above tasks can be accomplished in pgAdmin as follows:
Inner Joins
Theta Join
Step 1) Login to your pgAdmin account.

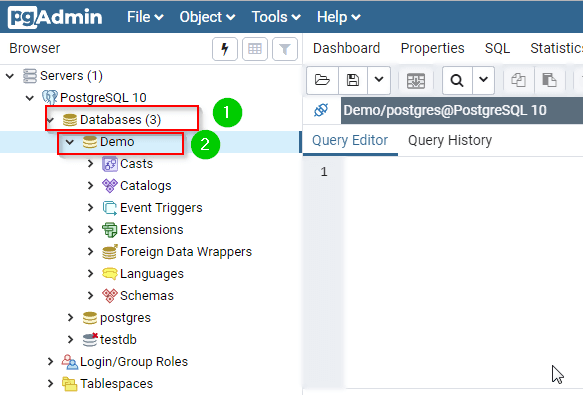

Step 2)
- From the navigation bar on the left- Click Databases.
- Click Demo.

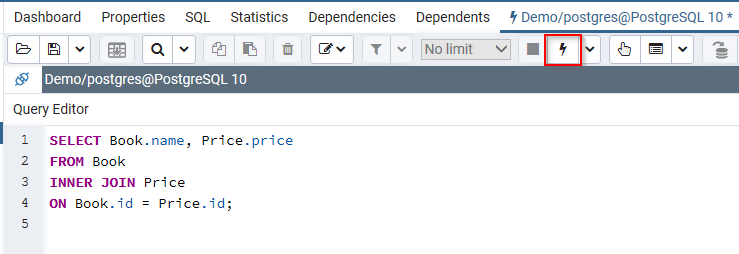

Step 3) Type the query in the query editor:
SELECT Book.name, Price.price FROM Book INNER JOIN Price ON Book.id = Price.id;

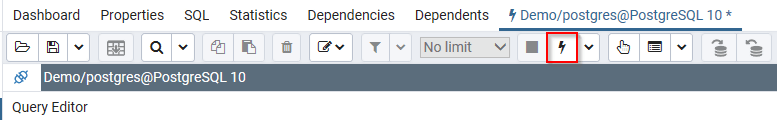

Step 4) Click the Execute button.

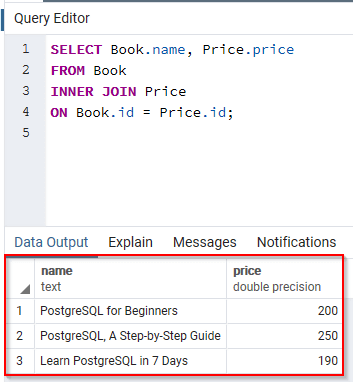

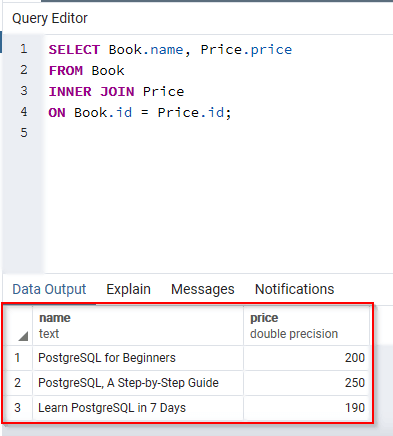

It should return the following:
EQUI Join
Step 1) Login to your pgAdmin account.
Step 2)
- From the navigation bar on the left- Click Databases.
- Click Demo.
Step 3) Type the query in the query editor:
SELECT * FROM Book JOIN Price ON Book.id = Price.id;
Step 4) Click the Execute button.

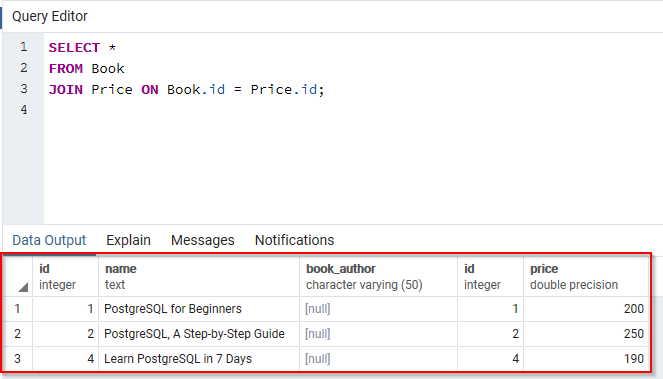

It should return the following:
Natural Join
Step 1) Login to your pgAdmin account.
Step 2)
- From the navigation bar on the left- Click Databases.
- Click Demo.
Step 3) Type the query in the query editor:
SELECT * FROM Book NATURAL JOIN Price;
Step 4) Click the Execute button.

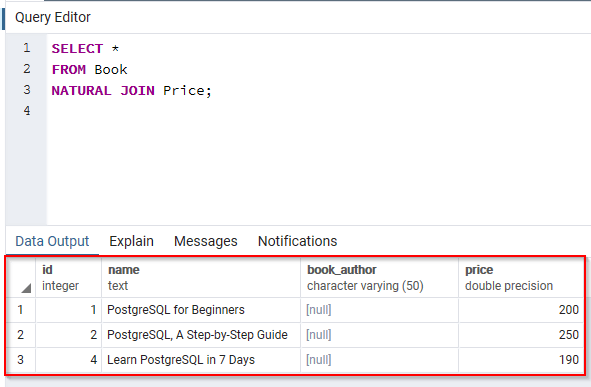

It should return the following:
INNER JOIN (simple join)
Step 1) Login to your pgAdmin account.
Step 2)
- From the navigation bar on the left- Click Databases.
- Click Demo.
Step 3) Type the query in the query editor:
SELECT Book.name, Price.price FROM Book INNER JOIN Price ON Book.id = Price.id;
Step 4) Click the Execute button.
It should return the following:
Outer Joins
LEFT OUTER JOIN
Step 1) Login to your pgAdmin account.
Step 2)
- From the navigation bar on the left- Click Databases.
- Click Demo.

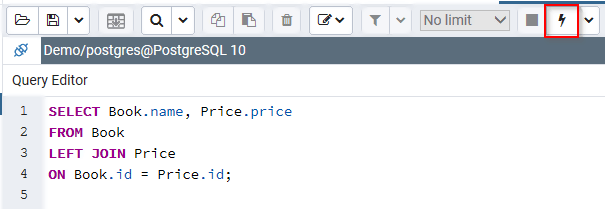

Step 3) Type the query in the query editor:
SELECT Book.name, Price.price FROM Book LEFT JOIN Price ON Book.id = Price.id;
Step 4) Click the Execute button.

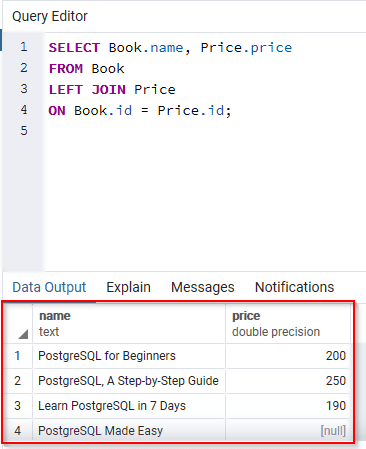

It should return the following:
RIGHT OUTER JOIN
Step 1) Login to your pgAdmin account.
Step 2)
- From the navigation bar on the left- Click Databases.
- Click Demo.

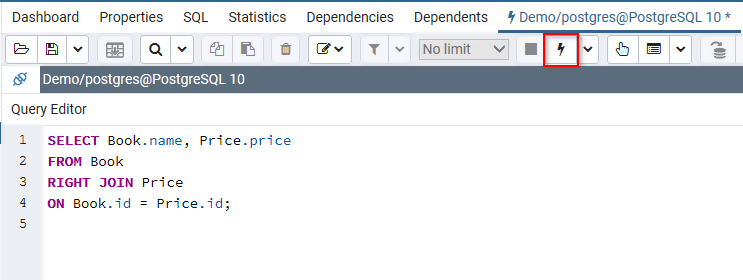

Step 3) Type the query in the query editor:
SELECT Book.name, Price.price FROM Book RIGHT JOIN Price ON Book.id = Price.id;
Step 4) Click the Execute button.

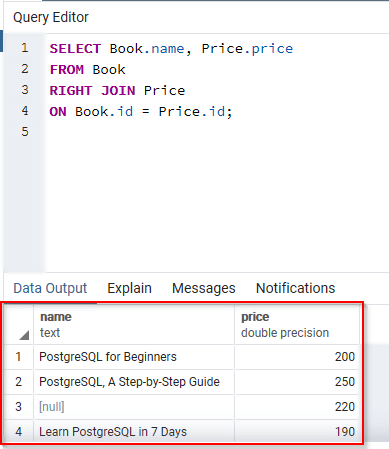

It should return the following:
Full Outer Join
Step 1) Login to your pgAdmin account.
Step 2)
- From the navigation bar on the left- Click Databases.
- Click Demo.
Step 3) Type the query in the query editor:
SELECT Book.name, Price.price FROM Book FULL OUTER JOIN Price ON Book.id = Price.id;

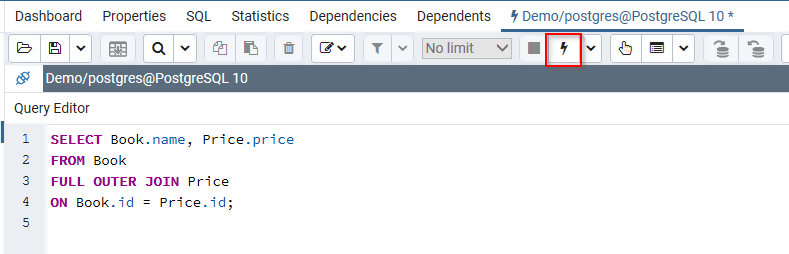

Step 4) Click the Execute button.

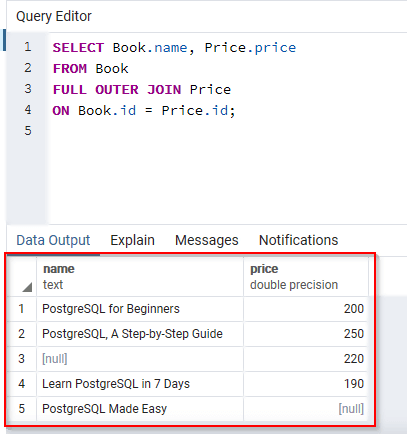

It should return the following:
Summary:
- In PostgreSQL, we use JOINs when we need to retrieve values from more than one table.
- The INNER JOIN is the most basic type of JOIN. It returns all records where the specified JOIN condition was satisfied.
- The LEFT OUTER JOIN returns all rows in the left-hand table and only the rows in the other table where the join condition has been satisfied.
- The RIGHT OUTER JOIN returns all rows in the right-hand table and only rows in the other table where the join condition has been satisfied.
- This type of JOIN returns all rows in the left-hand table and all rows in the right-hand table with nulls where the join condition is not satisfied.
Download the Database used in this Tutorial
