Remote Function Call (RFC) in SAP Tutorial
- Details
What is RFC?
RFC is a mechanism that allows business applications to communicate and exchange information (in pre-defined formats) with other systems. RFC stands for 'Remote Function Call'
RFC consists of two interfaces:
- A calling interface for ABAP Programs
- A calling interface for Non-SAP programs.

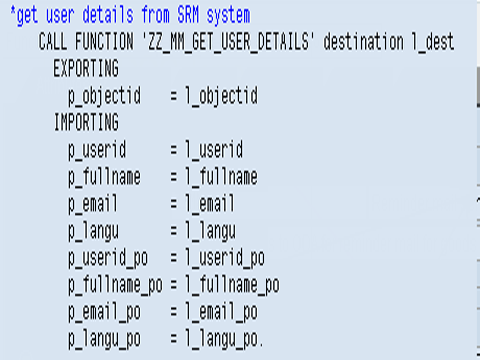

Any ABAP program can call a remote function using the CALL FUNCTION...DESTINATION statement. The DESTINATION parameter tells the SAP System that the called function runs in a system other than the callers.
Syntax-
CALL FUNCTION 'remotefunction' DESTINATION dest EXPORTING f1 = IMPORTING f2 = TABLES t1 = EXCEPTIONS
Logical Destinations are defined via transaction SM59 and stored in Table RFCDES
Functions of the RFC interface
- Converting all parameter data to the representation needed in the remote system
- Calling the communication routines needed to talk to the remote system.
- Handling communications errors, and notifying the caller, if desired ( using EXCEPTIONS parameter of the CALL FUNCTION).
The Source System resource does not wait for the target system as they deliver the message/data without waiting for any acknowledgment. It is not reliable for communication since data may be lost if the target system is not available. Used for -
- For communication between systems
- For parallel processing
Transactional
It is a special form of aRFC. Transactional RFC ensures transaction-like handling of processing steps that were originally autonomous.
Transactional RFC is an asynchronous communication method that executes the called function module in the RFC server only once, even if the data is sent multiple times due to some network issue. The remote system need not be available at the time when the RFC client program is executing a tRFC. The tRFC component stores the called RFC function, together with the corresponding data, in the SAP database under a unique transaction ID (TID). tRFC is similar to aRFC as it does not wait at the target system (Similar to a registered post). If the system is not available, it will write the Data into aRFC Tables with a transaction ID (SM58) which is picked by the scheduler RSARFCSE (which runs for every 60 seconds). Used For-
- Extension of Asynchronous RFC
- For secure communication between systems
Queued
Queued RFC is an extension of tRFC. It also ensures that individual steps are processed in sequence.
To guarantee that multiple LUWs (Logical Unit of Work/ Transaction) are processed in the order specified by the application. tRFC can be serialized using queues (inbound and outbound queues). Hence the name queued RFC (qRFC). Used For-
- Extension of the Transactional RFC
- For a defined processing sequence
- Implementation of qRFC is recommended if you want to guarantee that several transactions are processed in a predefined order.

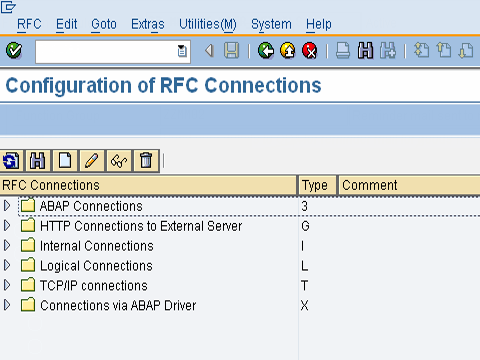

Types of RFC Connections

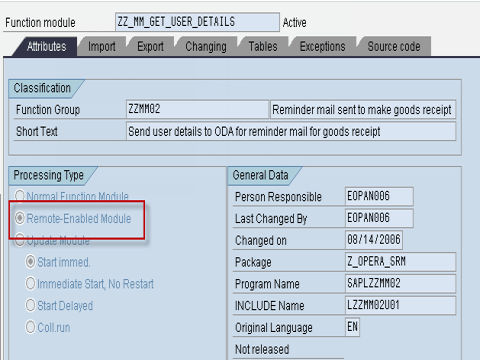

2.Write the code for the function module.
3.Define the destination of the RFC server in the RFC client system that calls the remote function ( via SM59 transaction).
4.Declaring Parameters: All parameter fields for a remote function module must be defined as reference fields, that is, like ABAP Dictionary fields.
5.Exceptions: The system raises COMMUNICATION_FAILURE and SYSTEM_FAILURE internally. You can raise exceptions in a remote function just as you would in a locally called function.
Debugging Remote Function Calls
- It is not possible to debug a remote function call to another system.
- However, when testing ABAP-to-ABAP RFC calls, you can use the ABAP debugger to monitor the execution of the RFC function in the remote system.
- With remote calls, the ABAP debugger (including the debugging interface) runs on the local system. Data values and other run information for the remote function are passed in from the remote system.
