Smart Forms in SAP ABAP

SAP Smart Forms is used to create and maintain forms for mass printing in SAP Systems.As output medium SAP Smart Forms support a printer, a fax, e-mail, or the Internet (by using the generated XML output).

SAP introduced SmartForms in 1998 to overcome the limitations in SAP Scripts. SmartForms are easier to develop, maintain and transport than SAP Script.

In this tutorial you will learn:

• Smart Forms and SapScripts Comparison
• Advanatges of Smart Forms
• Architecture of SAP Smart Form
• Smartforms Guide
• Windows in Smart Forms
• Smart Forms Programming Flow

Smart Forms and  SapScripts Comparison

• Multiple page formats are possible in SmartForms which is not the case in SAPScripts
• It is possible to have a SmartForm without a main window.
• Routines can be written in SmartForms tool.
• SmartForms generates a function module when activated.
• Labels cannot be created in SmartForms.

Advanatges of Smart Forms

• They  help adapting forms without any programming knowledge due to entirely graphical user interface
• When activating the smart form the system automatically generates the function module and at the runtime .
• To make any changes we have to use the Drag & Drop, Cut & Paste. These actions do not include writing of coding lines or using a script language.
• We can insert static and dynamic tables. These include the line feeds in the individual table cells, triggering events for table headings and subtotals and sorting data before output.
• The smart forms allow the user to include graphics, which can be displayed as a part of the form or as background graphics. During printout the user can suppress the background graphic as and when necessary.
• Web Publishing is possible using the generated XML output

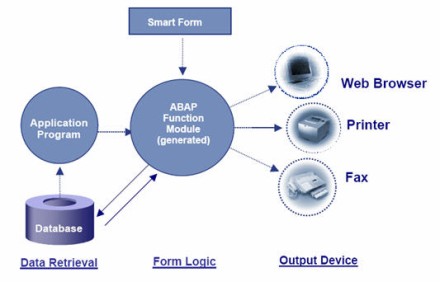

Architecture of SAP Smart Form

Smartforms Guide

Lets go through it in SAP system-

1. Enter transaction SMARTFORMS in the transaction code box.

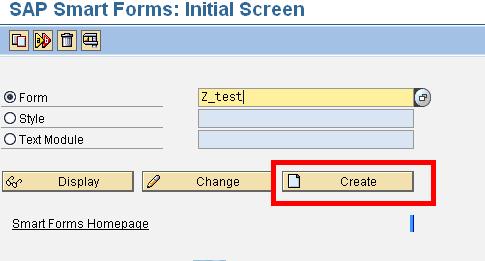

2. In the next screen , enter a Form name and click create

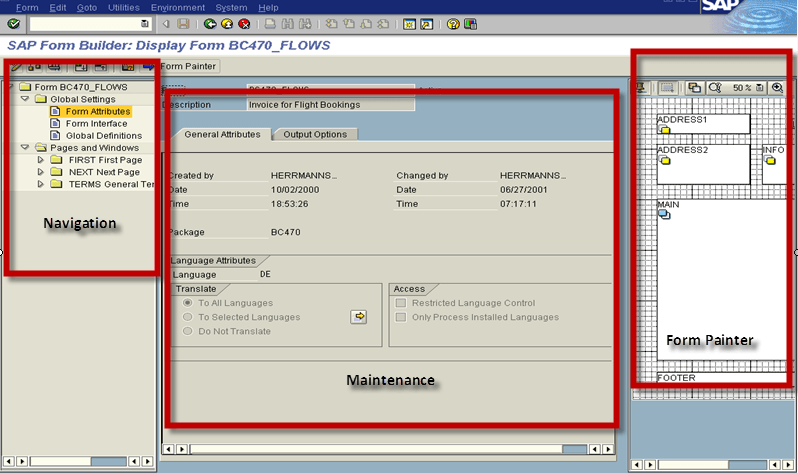

The next screen is divided into three sections-

Navigation window consist of nodes and sub nodes. They contain all the elements (text, window etc) that belong to sap forms

• Maintenance window shows attributes of the elements
• Form printer window shows the layout of the page

Whenever we create smart forms, SAP creates/generates a function module.Unlike SAPscripts , SAP FORMS allow you to change language.

In the navigation window  you will find

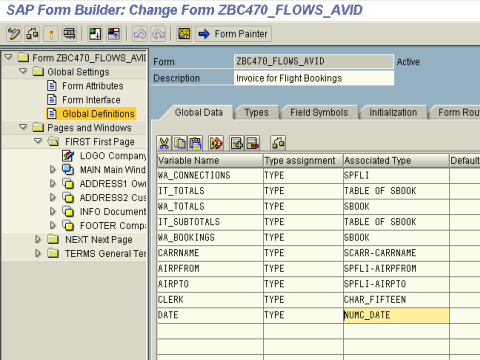

Global Data Declarations : The Data defined here can be used throughout the smartform for coding purposes.

Form Interface : Here all the data which will be passed to the smartform from the Print program is defined.

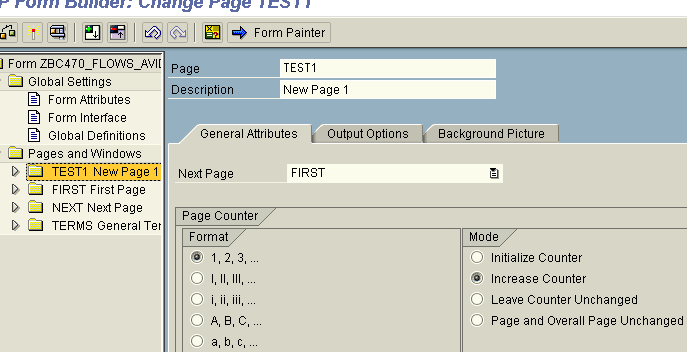

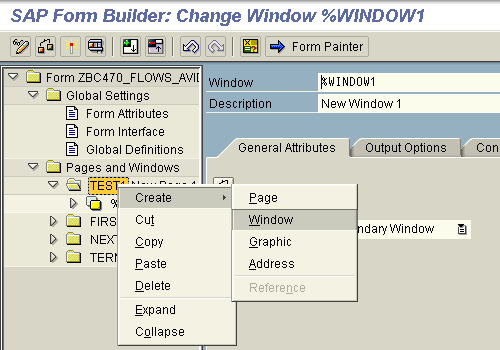

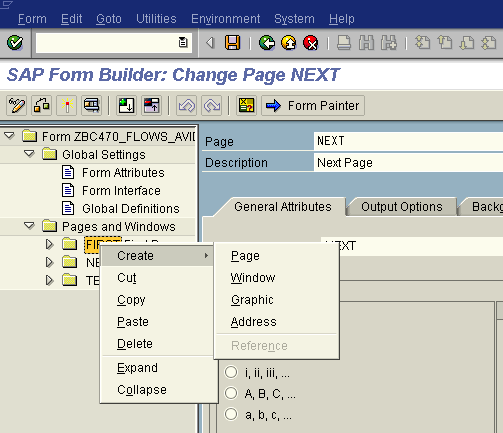

Right-Clicking on the Pages will allow creation of New Page, Window, Graphic or Address.

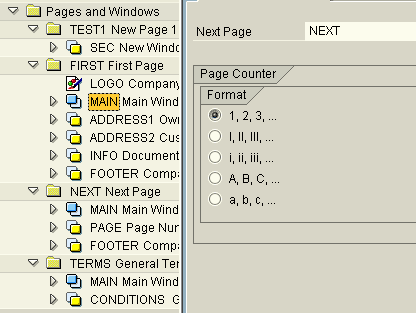

Printing will take place on the basis of 'next page' field.

But processing will happen as per the sequence in navigation window!

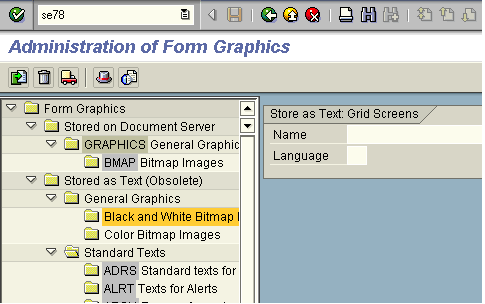

For background picture and graphics you can pick up either black and white or color bitmap images and are stored in the form of standard texts. You may take a detour from the smartform screen and open Form Graphics screen. Transaction code: Se78

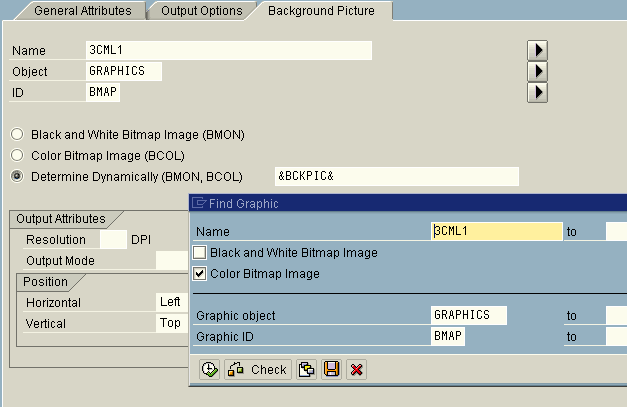

Setting in the Graphics in  Smart Form Window-

Windows in Smart Forms

There are two types of Windows

1. Main
2. Secondary

Important Points to Note

• You cannot have more than 1 main window in a page. You can have multiple secondary windows
• Whatever you print in secondary window...it has to be static. (If u have 20 lines in a PO and there is page constraint the lines get carried forward to next page in the main window. i.e. In a predecessor and successor type of content, they will be printed in sequence in main window. This is not allowed in Secondary windows.

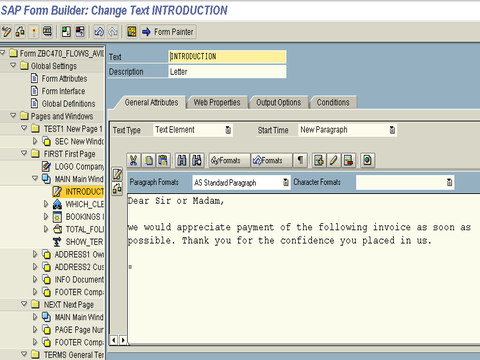

Inside the main window we can add text as introduction to customize the form output.

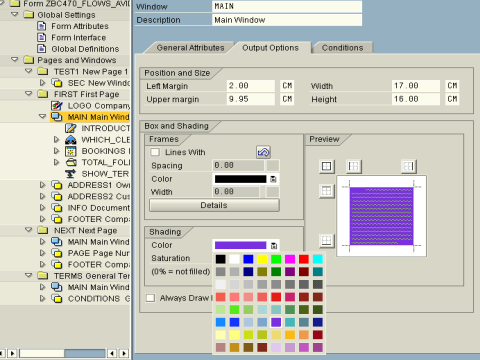

The Output options on each window determine the Line size, Width, Colors and background to be put.

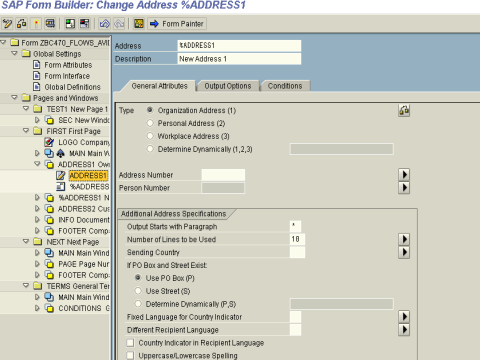

Smartforms gives the option of giving the address number which is maintained in the central address management. The address will be directly taken from ADRC table and will be populated in the form.

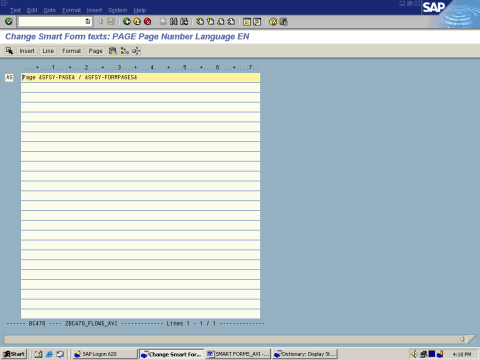

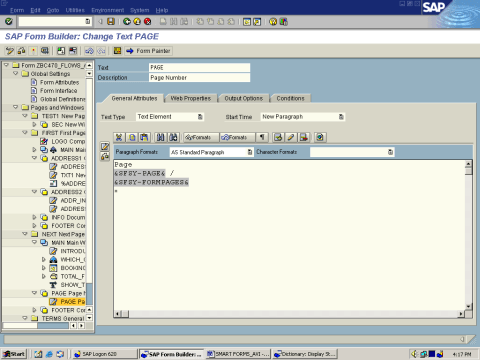

The two different editors are available in Smartforms viz. Normal Editor

and the Graphics Editor.

This setting can be changed using the Configure editor in Utilities.

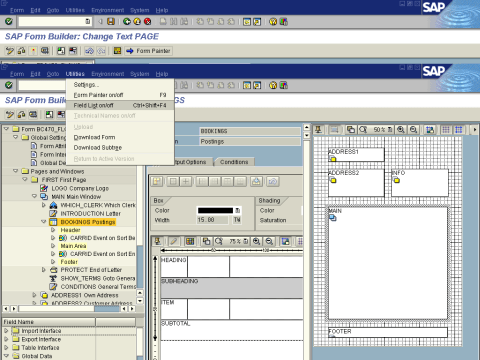

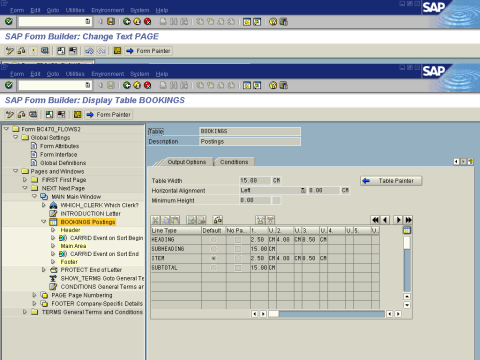

In Table painter, you can draw the format as per client requirement (e.g. Heading, Sub Heading, Item, Sub Total, Grand Total etc.)

You can use the table layout to determine:

• The number of lines and cells
• The height of each line
• The width of each cell
• The alignment of the table in the window

The Table shows the different line types which will be used in the table. The Line types define the size of each cell and the number of cells in each line.

Smart Forms Programming Flow

When an SAP Smart Form template is created, a user creates the form layout, defines the required fields, conditions, and special programming instructions in the Smart Form template using the Smart Form Builder.

After the form design is complete, the form needs to be activated before it can be tested or accessed by the print programs.Activating the form initiates the generation of a function module that handles all of the form's processing.

This function module interacts with the application program/print program to create the output in the user-defined output media for the specified device.

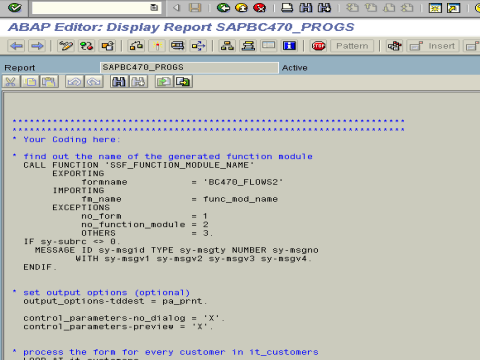

In case of smart forms, we use 2 function modules for the processing of the smart form. To the first function module , we pass the name of the smart form as the import parameter. This then returns the name of the dynamically generated function module which will actually call the smartform.

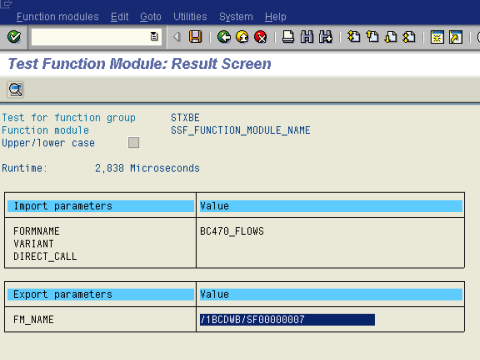

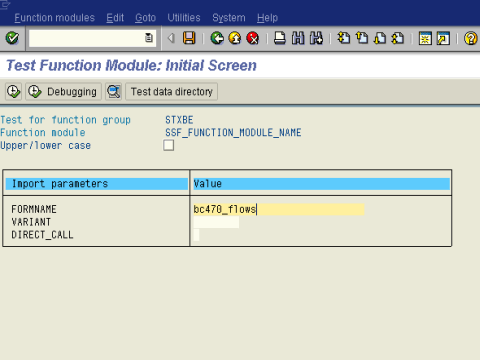

The smartform name can be passed on to the function Module - 'SSF_FUNCTION_MODULE_NAME'

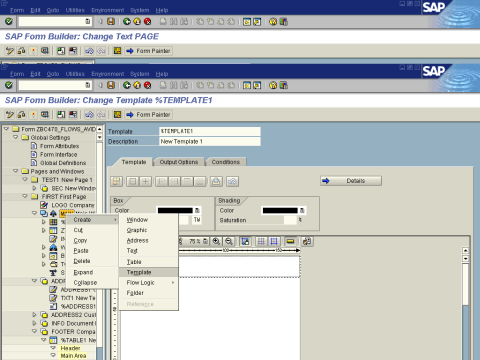

Templates

Template can be  used when you know the exact size of the output or the output is in a fixed format.

E.g. Tax form/ cheques /airline form/railway ticket: all these use templates.

The big  between table and template is that in a Table the height changes dynamically.We call a row a 'line' in template.

SMART Styles

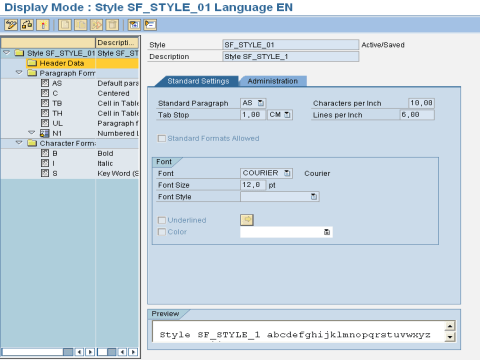

A Smart Style contains:

• Header data containing the default values of a Smart Style
• Paragraph formats including indents and spacing, font attributes, tabs, and outline and numbering
• Character formats including effects (superscript, subscript), barcode and font attributes
• Colors and underlines for a paragraph or character format

You can use the transaction 'smartforms' / 'smartstyles' to create a smart style.
