Prototyping Model in Software Engineering: Methodology, Process, Approach

In this tutorial, you will learn

• What is Software Prototyping Model?
• Prototyping Model Phases
• Types of Prototyping
• Best practices of Prototyping
• Advantages of Prototyping Model
• Disadvantages of Prototyping Model

Prototyping Model Phases

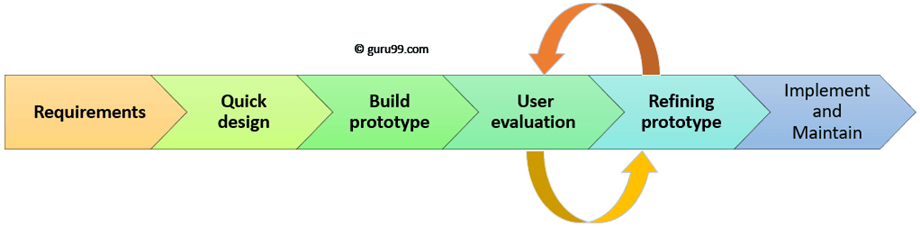

Prototyping Model has following six SDLC phases as follow:

Step 1: Requirements gathering and analysis

A prototyping model starts with requirement analysis. In this phase, the requirements of the system are defined in detail. During the process, the users of the system are interviewed to know what is their expectation from the system.

Step 2: Quick design

The second phase is a preliminary design or a quick design. In this stage, a simple design of the system is created. However, it is not a complete design. It gives a brief idea of the system to the user. The quick design helps in developing the prototype.

Step 3: Build a Prototype

In this phase, an actual prototype is designed based on the information gathered from quick design. It is a small working model of the required system.

Step 4: Initial user evaluation

In this stage, the proposed system is presented to the client for an initial evaluation. It helps to find out the strength and weakness of the working model. Comment and suggestion are collected from the customer and provided to the developer.

Step 5: Refining prototype

If the user is not happy with the current prototype, you need to refine the prototype according to the user's feedback and suggestions.

This phase will not over until all the requirements specified by the user are met. Once the user is satisfied with the developed prototype, a final system is developed based on the approved final prototype.

Step 6: Implement Product and Maintain

Once the final system is developed based on the final prototype, it is thoroughly tested and deployed to production. The system undergoes routine maintenance for minimizing downtime and prevent large-scale failures.

Types of Prototyping Models

Four types of Prototyping models are:

1. Rapid Throwaway prototypes
2. Evolutionary prototype
3. Incremental prototype
4. Extreme prototype

Rapid Throwaway Prototype

Rapid throwaway is based on the preliminary requirement. It is quickly developed to show how the requirement will look visually. The customer's feedback helps drives changes to the requirement, and the prototype is again created until the requirement is baselined.

In this method, a developed prototype will be discarded and will not be a part of the ultimately accepted prototype. This technique is useful for exploring ideas and getting instant feedback for customer requirements.

Evolutionary Prototyping

Here, the prototype developed is incrementally refined based on customer's feedback until it is finally accepted. It helps you to save time as well as effort. That's because developing a prototype from scratch for every interaction of the process can sometimes be very frustrating.

This model is helpful for a project which uses a new technology that is not well understood. It is also used for a complex project where every functionality must be checked once. It is helpful when the requirement is not stable or not understood clearly at the initial stage.

Incremental Prototyping

In incremental Prototyping, the final product is decimated into different small prototypes and developed individually. Eventually, the different prototypes are merged into a single product. This method is helpful to reduce the feedback time between the user and the application development team.

Extreme Prototyping:

Extreme prototyping method is mostly used for web development. It is consists of three sequential phases.

1. Basic prototype with all the existing page is present in the HTML format.
2. You can simulate data process using a prototype services layer.
3. The services are implemented and integrated into the final prototype.

Best practices of Prototyping

Here, are a few things which you should watch for during the prototyping process:

• You should use Prototyping when the requirements are unclear
• It is important to perform planned and controlled Prototyping.
• Regular meetings are vital to keep the project on time and avoid costly delays.
• The users and the designers should be aware of the prototyping issues and pitfalls.
• At a very early stage, you need to approve a prototype and only then allow the team to move to the next step.
• In software prototyping method, you should never be afraid to change earlier decisions if new ideas need to be deployed.
• You should select the appropriate step size for each version.
• Implement important features early on so that if you run out of the time, you still have a worthwhile system

Advantages of the Prototyping Model

Here, are important pros/benefits of using Prototyping models:

• Users are actively involved in development. Therefore, errors can be detected in the initial stage of the software development process.
• Missing functionality can be identified, which helps to reduce the risk of failure as Prototyping is also considered as a risk reduction activity.
• Helps team member to communicate effectively
• Customer satisfaction exists because the customer can feel the product at a very early stage.
• There will be hardly any chance of software rejection.
• Quicker user feedback helps you to achieve better software development solutions.
• Allows the client to compare if the software code matches the software specification.
• It helps you to find out the missing functionality in the system.
• It also identifies the complex or difficult functions.
• Encourages innovation and flexible designing.
• It is a straightforward model, so it is easy to understand.
• No need for specialized experts to build the model
• The prototype serves as a basis for deriving a system specification.
• The prototype helps to gain a better understanding of the customer's needs.
• Prototypes can be changed and even discarded.
• A prototype also serves as the basis for operational specifications.
• Prototypes may offer early training for future users of the software system.

Disadvantages of the Prototyping Model

Here, are important cons/drawbacks of prototyping model:

• Prototyping is a slow and time taking process.
• The cost of developing a prototype is a total waste as the prototype is ultimately thrown away.
• Prototyping may encourage excessive change requests.
• Some times customers may not be willing to participate in the iteration cycle for the longer time duration.
• There may be far too many variations in software requirements when each time the prototype is evaluated by the customer.
• Poor documentation because the requirements of the customers are changing.
• It is very difficult for software developers to accommodate all the changes demanded by the clients.
• After seeing an early prototype model, the customers may think that the actual product will be delivered to him soon.
• The client may lose interest in the final product when he or she is not happy with the initial prototype.
• Developers who want to build prototypes quickly may end up building sub-standard development solutions.

Summary

• In Software Engineering, Prototype methodology is a software development model in which a prototype is built, test and then reworked when needed until an acceptable prototype is achieved.
• 1) Requirements gathering and analysis, 2) Quick design, 3) Build a Prototype, 4) Initial user evaluation, 5) Refining prototype, 6)Implement Product and Maintain; are 6 steps of the prototyping process
• Type of prototyping models are 1) Rapid Throwaway prototypes 2) Evolutionary prototype 3) Incremental prototype 4) Extreme prototype
• Regular meetings are essential to keep the project on time and avoid costly delays in prototyping approach.
• Missing functionality can be identified, which helps to reduce the risk of failure as Prototyping is also considered as a risk reduction activity in SDLC.
• Prototyping may encourage excessive change requests.
