SQL Server Management Studio: MS SSMS Download & Install

In this SSMS tutorial, you will learn

• How to Download and Install SQL Server Management Studio
• How to access "Management Studio"
• Access "Management studio" using Command line
• Introduction to Data Management Studio IDE
• SSMS Tips and Issues
• SSMS Versions and Updates

How to Download and Install SQL Server Management Studio

Following are the steps on how to download and install Microsoft SQL Server Management Studio (SSMS):

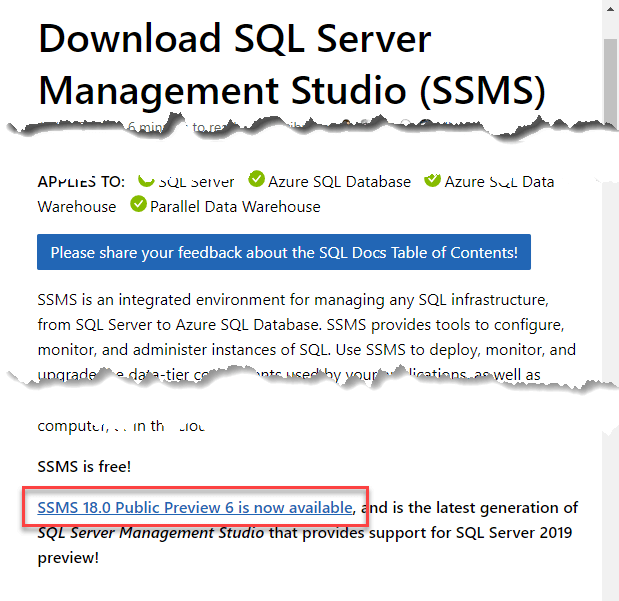

Step 1) Go to this link and click on Download SQL Server Management Studio 18.0 (preview 6) for SSMS Download

Step 2) Once downloaded we will get a .exe file named as "SSMS-Setup-ENU.exe." Double click on it

Step 3) Below window will appear. Click on 'Install' button to install SQL Server Management Studio (SSMS) on your system

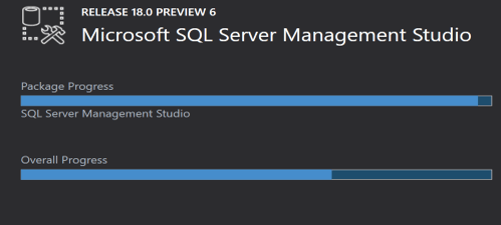

Step 4) Installation will begin. Below screen will show Packages progress and Overall Progress.

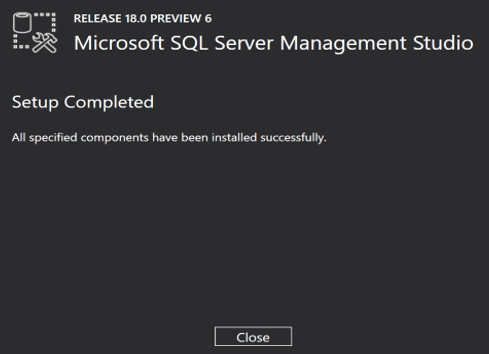

Step 5) Once Completed, SSMS Setup will show the below screen with "Setup Completed" message.

How to access "Management Studio."

Now, we're ready to open "Management Studio. Go To Start Menu>Programs>Microsoft SQL Server Tools 18> Microsoft SSMS 18.

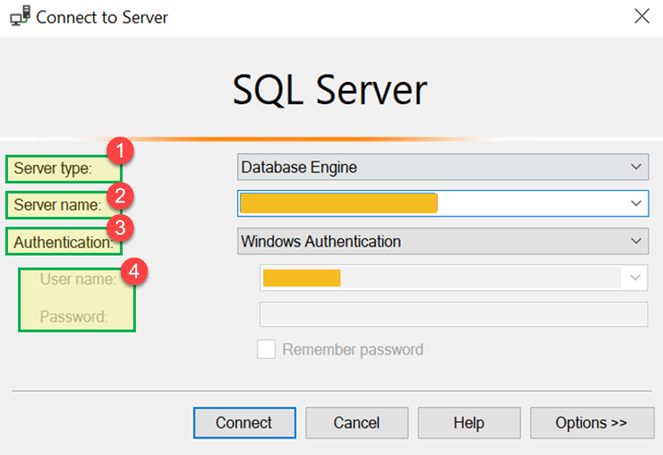

Below 'Connect to Server' screen will appear. Server Name defaults to the name selected while installing MS SQL server.

Let's understand each of the above fields

1. Server type: This is an option to select one out of four available MS SQL services option. We will be working on 'Database Engine' for creating and working with Database. Other Server type includes Analysis, Reporting & Integration Services.

2. Server name: This is Server's name where MS SQL Server is installed and need to establish the connection with that server. Generally, we use the server name as "Machine name\Instance." Here Instance is the name given to SQL Server instance while SQL server installation.

3. Authentication: This is defaulted to "Windows Authentication" if we use "Windows Authentication" during SQL Server Installation. Else, if we select 'Mixed Mode (Windows Authentication & Windows Authentication)' then Authentication will be defaulted to "SQL Server Installation."

4. User name\Password: If Authentication is selected other than "Windows Authentication" like "SQL server Installation" then these two fields will be required.

Click on 'Connect.' Now you will be connected to 'Data Management Studio.'

Access "Management studio" using Command line.

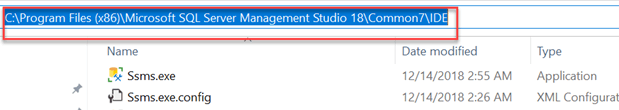

Alternatively, we can also open MS SQL Management Studio using Window Command line. You need to have full path of ssms.exe. Below is default location and file name:

Path:

C:\Program Files (x86)\Microsoft SQL Server Management Studio 18\Common7\IDE
Exe name: ssms.exe

Here, are the steps to access via command line:

1. Open Command Prompt by typing CMD in Search window.
2. Type entire path followed by ssms.exe as shown below and Press 'Enter'.

'Connect to Server' screen will appear in a similar way as described in the previous section.

Introduction to Data Management Studio IDE

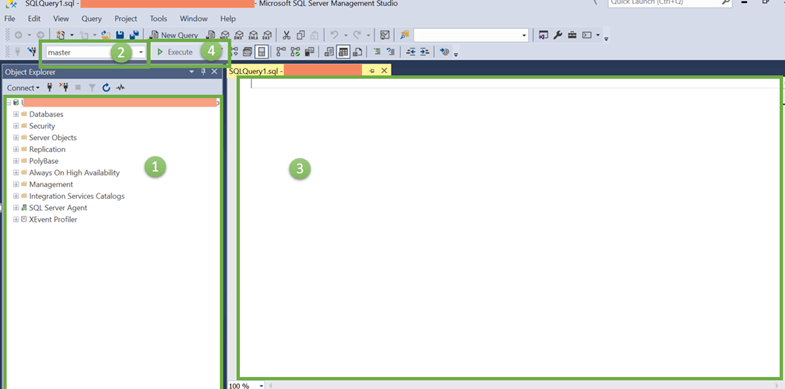

Below is the start screen for Data Management Studio.

Let's discuss each section in detail.

1) Object Explorer

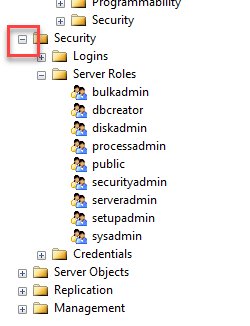

The Object Explorer provides a tree view of the database objects contained in the server. This section shows all the Databases, Security, Server Object for quick reference. To view the components of each object, just click the + icon located to the left of the object which will expand it.

2) Databases Selection Dropdown

This dropdown allows the user to select the Database in which we will be running our queries.

3) Query Editor

Here we can write all our queries. MS SQL server provides interactive suggestions for tables, columns, etc. for easy queries creations and much more.

4) Execute button

This button will finally execute the query and return the results.

SSMS Tips and Issues

• Management Studio is a standalone product. It does not correspond to any specific version of SQL Server. For example, we can use SMMS Version 18 with SQL Server 2017, SQL Server 2016 as well.
• Large codes reduce readability. Use comments for better Readability. Put "--" in front of any line to comment it out.

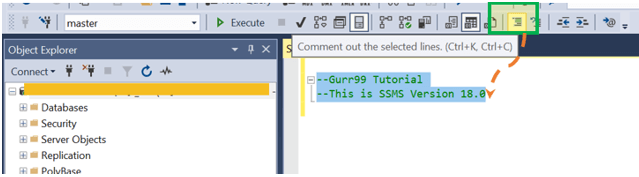

• Group comment: We can comment out the group of line by selecting them all and clicking on Icon shown in below image.

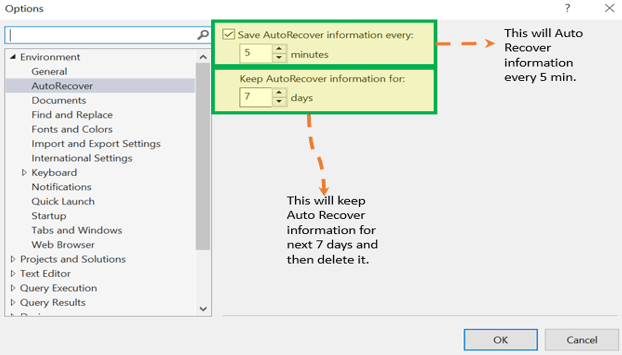

• Unexpected shutdown, a system failure can cause unexpected data loss. Set 'Autorecover' option checked to minimize data loss. We can even customized time interval to AutoRecover data and the number of days this information to be saved before deleting it.

  Tools> Options>Environment>AutoRecover



In case of failure, the popup window will appear with the name

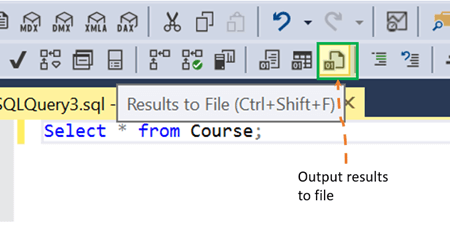

• We often need the result of our query to be saved in text format for future references.



We can click and select the above-highlighted icon & run any Query. We will be prompt to specify the location where the file can be saved future reference.

SSMS Versions and Updates

SSMS first version was with SQL server 2005. SSMS remains an integral part of SQL server with SQL Server 2008, SQL Server 2012 and SQL Server 2016.In 2016, Microsoft started the first numerical series of versioning with the SSMS version number as 16.3. All series include 16.x, 17.x and 18.0 as version numbers.

Latest 18.0 series have the following versions: 18.0 (Preview 4), 18.0 (Preview 5) and 18.0 (Preview 6)

Until Dec 18, 2018 latest version is SSMS 18.0 (Preview 6)

More updates on 18.0 series can be found here - https://docs.microsoft.com/en-us/sql/ssms/release-notes-ssms?view=sql-server-2017

SSMS supported operating systems

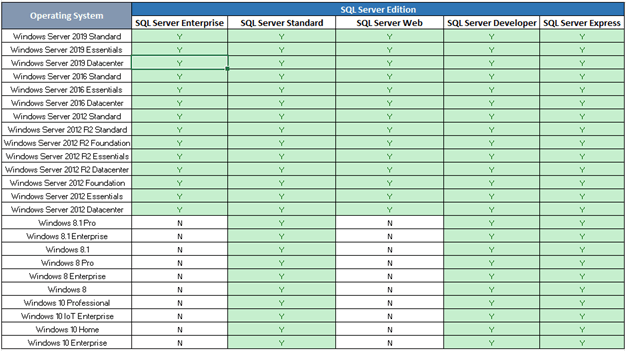

Below table shows SQL server edition and its corresponding supported Operating system. 'Y' means Supported and 'N' Means Not Supported.

Summary:

• SSMS full form is "SQL Server Management Studio"
• Server Management Studio provides a Graphical interface for connecting and working with MS SQL Server.
• It provides Object Explorer, Query editor as a major window to start with.
