Excel VBA Arrays: What is, How to Use & Types of Arrays in VBA

Details

What is VBA Array?

An array is defined as a memory location capable of storing more than one value. The values must all be of the same data type. Let's say you want to store a list of your favourite beverages in a single variable, you can use VBA array to do that.

By using an array, you can refer to the related values by the same name. You can use an index or subscript to tell them apart. The individual values are referred as the elements of the Excel VBA array. They are contiguous from index 0 through the highest index value.

This tutorial assumes you are using Microsoft Excel version 2013. The knowledge still applies to other versions of Microsoft Excel as well.

In this VBA Programming tutorial, you will learn-

What are Advantages of arrays?

The following are some of the benefits offered by VBA array function

  1. Group logically related data together – let's say you want to store a list of students. You can use a single array variable that has separate locations for student categories i.e. kinder garden, primary, secondary, high school, etc.
  2. Arrays make it easy to write maintainable code. For the same logically related data, it allows you to define a single variable, instead of defining more than one variable.
  3. Better performance – once an array has been defined, it is faster to retrieve, sort, and modify data.

Types of Arrays in VBA

VBA supports two types of arrays namely;

  • Static – These types of arrays have a fixed pre-determined number of elements that can be stored. One cannot change the size of the data type of a Static Array. These are useful when you want to work with known entities such as the number of days in a week, gender, etc.

    For Example: Dim ArrayMonth(12) As String

  • Dynamic – These types of arrays do not have a fixed pre-determined number of elements that can be stored. These are useful when working with entities that you cannot predetermine the number.

    For Example: Dim ArrayMonth() As Variant

Syntax to declare arrays

Static arrays

The syntax for declaring STATIC arrays is as follows:

Dim arrayName (n) as datatype

HERE,

Code Action
Dim arrayName (n) datatype
  1. It declares an array variable called arrayName with a size of n and datatype. Size refers to the number of elements that the array can store.

Dynamic arrays

The syntax for declaring DYNAMIC arrays is as follows:

Dim arrayName() as datatype
ReDim arrayName(4)

HERE,

Code Action
Dim arrayName () datatype
  1. It declares an array variable called arrayName without specifying the number of elements
ReDim arrayName(4)
  1. It specifies the array size after the array has been defined.

Array Dimensions

An array can be one dimension, two dimensions or multidimensional.

How to use Array in Excel VBA

We will create a simple application. This application populates an Excel sheet with data from an array variable. In this VBA Array example, we are going to do following things.

Let do this exercise step by step,

Step 1 – Create a new workbook

  1. Open Microsoft Excel
  2. Save the new workbook as VBA Arrays.xlsm

Step 2 – Add a command button

Note: This section assumes you are familiar with the process of creating an interface in excel. If you are not familiar, read the tutorial VBA Excel Form Control & ActiveX Control. It will show you how to create the interface

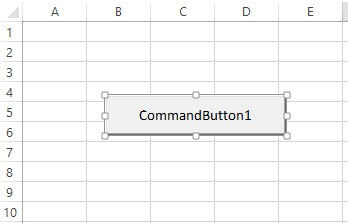

  1. Add a command button to the sheet

VBA Arrays

  1. Set the name property to cmdLoadBeverages
  2. Set the caption property to Load Beverages

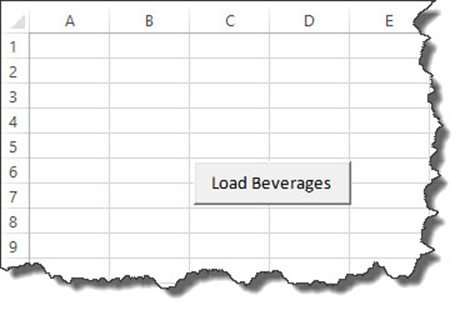

Your GUI should now be as follows

VBA Arrays

Step 3 – Save the file

  1. Click on save as button
  2. Choose Excel Macro-Enabled Workbook (*.xlsm) as shown in the image below

VBA Arrays

Step 4 – Write the code

We will now write the code for our application

  1. Right click on Load Beverages button and select view code
  2. Add the following code to the click event of cmdLoadBeverages
Private Sub cmdLoadBeverages_Click()
    Dim Drinks(1 To 4) As String

    Drinks(1) = "Pepsi"
    Drinks(2) = "Coke"
    Drinks(3) = "Fanta"
    Drinks(4) = "Juice"

    Sheet1.Cells(1, 1).Value = "My Favorite Beverages"
    Sheet1.Cells(2, 1).Value = Drinks(1)
    Sheet1.Cells(3, 1).Value = Drinks(2)
    Sheet1.Cells(4, 1).Value = Drinks(3)
    Sheet1.Cells(5, 1).Value = Drinks(4)
End Sub

HERE,

Code

Action

Dim Drinks(1 To 4) As String

  • It declares an array variable called Drinks. The first array index is 1 and the last array index is 4.

Drinks(1) = "Pepsi"

  • Assigns the value Pepsi to the first array element. The other similar code does the same for the other elements in the array.

Sheet1.Cells(1, 1).Value = "My Favorite Beverages."

  • Writes the value My Favorite Beverages in cell address A1. Sheet1 makes reference to the sheet, and Cells(1,1) makes reference to row number 1 and column 1 (B)

Sheet1.Cells(2, 1).Value = Drinks(1)

  • Writes the value of the array element with index 1 to row number two of column 1

Testing our application

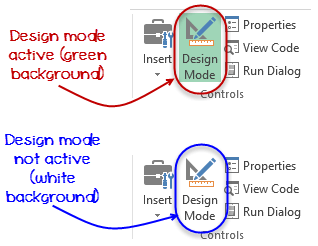

Select the developer tab and ensure that the Design mode button is "off." The indicator is, it will have a white background and not a coloured (greenish) background. (See image below)

VBA Arrays

Click on Load Beverages button

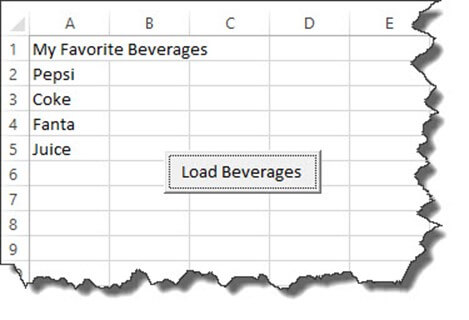

You will get the following results

VBA Arrays

Download Excel containing above code

Download the above Excel Code

Summary

  1. An array is a variable capable of storing more than one value
  2. Excel VBA supports static and dynamic arrays
  3. Arrays make it easy to write maintainable code compared to declaring a lot of variables for data that is logically related.
