Android APP Testing Tutorial with Automation Framework

Details

Last Updated: 12 February 2021

1. Unit Test
2. Integration Test
3. Operational Test
4. System Test

Unit Tests include sets of one or more programs which are designed to verify an atomic unit of source code, such as a method or a class.

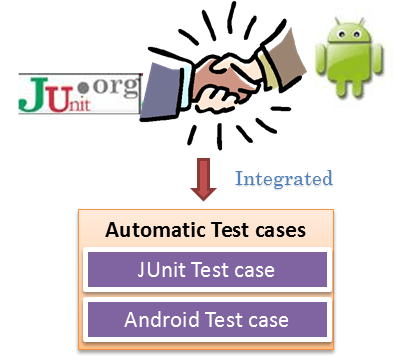

Android platform comes pre-integrated Junit 3.0 framework. It's open source framework for automating Unit Testing. Android Testing Framework is powerful tool for developer to write the effective unit test program.

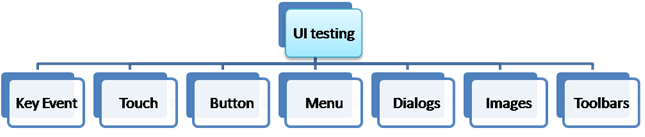

An addition to Unit Testing is User Interface (UI) tests. These tests relate to UI components of your target application. UI tests ensure that your application return the correct UI output in response to sequence of user actions on device.

The common way to performance UI tests on device is Android Instrumentation. But this has performance issues. One of the best tools to conduct UI testing on Android is Robotium .

Integration tests

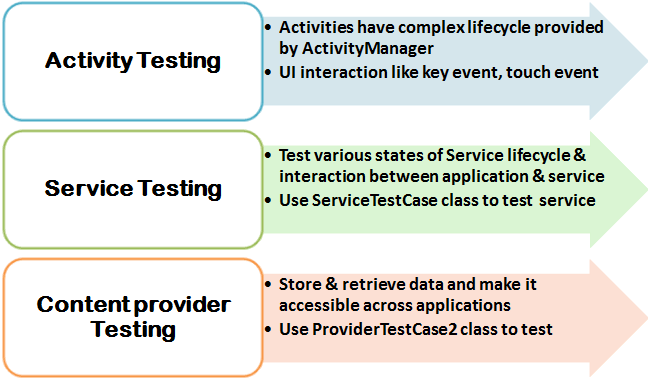

In Integration Testing, all unit tested modules, are combined and verified. In Android, integration tests often involve checking integration withAndroid components such as Service testing, Activity testing, Content Provider testing, etc

There's many testing frameworks are used to conduct integration test for Android such as Troyd, Robolectric, Robotium.

Operational tests

• Operational are also called Functional Tests or Acceptation Tests. They are high level tests designed to check the completeness and correctness of application.
• In Android, FitNesse is open-source framework that makes it easy to conduct operational tests for target application.

System tests

In System Testing the system is tested as a whole and the interaction between the components, software and hardware is checked.

In Android, System Testing normally includes

• GUI tests
• Usability tests
• Performance tests
• Stress tests

In the above list, Performance Testing is given more focus. You can use tools like Traceview to conduct performance test on Android .This tool can help you debug your application and profile its performance.

Automated ANDROID TESTING

As android is fragmented, testing on multitude of devices is necessary. But this will also cost you money. Automated Android Testing can help reduce costs

Benefits of automated android testing

• Reduce time for executing test cases
• Increase productivity of your development process
• Early bug detection, save cost on software maintenance
• Quickly found and fix the bugs on implementation
• Ensure the quality of software

We will study the following 2 frameworks

• Android Testing framework
• Robolectric Testing framework

Android testing framework

One of the standard testing frameworks for Android application is Android testing framework. It is a powerful and easy-to-use testing framework that is well integrated with the Android SDK tools.

         2a)  Test tools: A SDK tools for building test. They are integrated in Eclipse IDE or run as command line.

         2b)  MonkeyRunner: A tool that provides APIs for writing program which control an Android device or emulator outside of Android code.

3. Test package are organized into test projects. This package follows naming convention. If the application under test has a package name of "com.mydomain.myapp"  than Test package should be "com.mydomain.myapp.test" .Test package includes 2 objects as below:

         3a)  Test case classes:include test methods to executed on target application.

         3b)  Mock objects : includes mock data that will be used as sample input  for test cases.

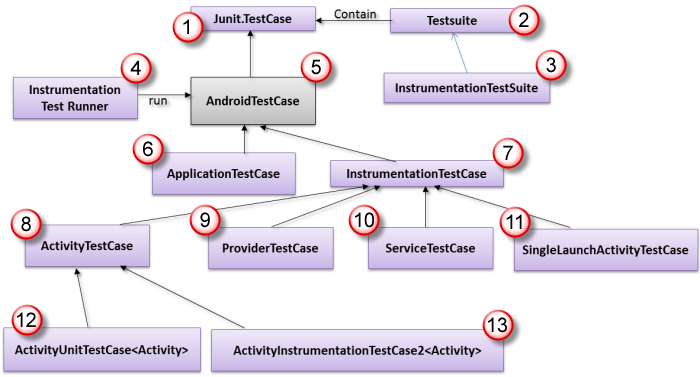

Android Test Case Classes

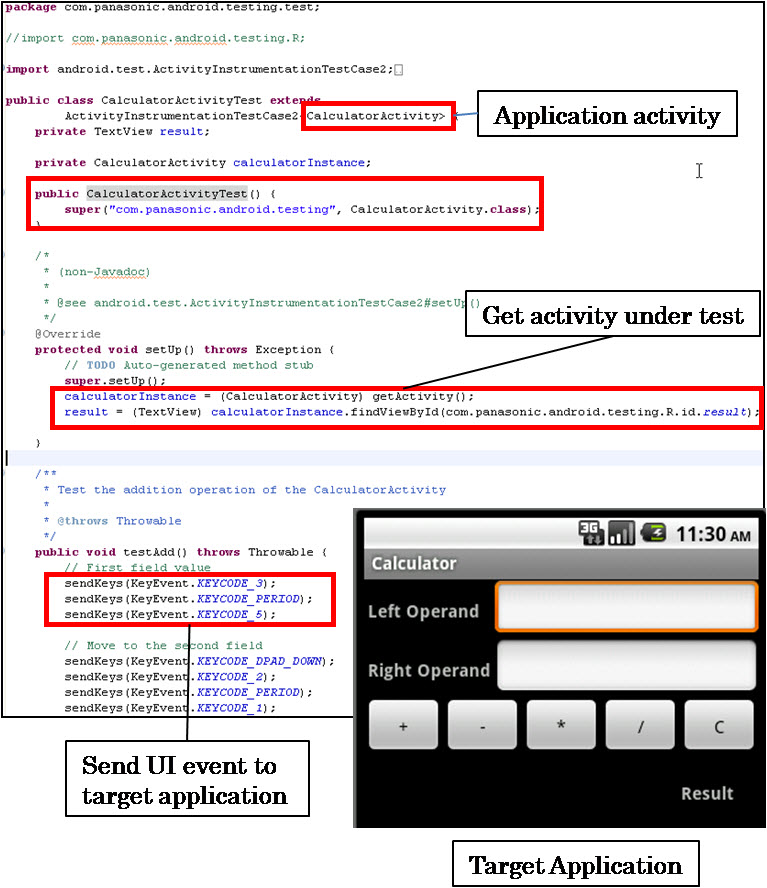

Below is an example of ActivityInstrumentationTestCase. It verifies the UI operation of Calculator application, check the correctness of the UI outputs.

Testing using Android Testing framework with device or emulator is difficult. Building and running test is slow and take much development effort. To fix this problem, there's another choice - Robolectric testing framework.

Robolectric framework allows you to run Android tests directly on JVM without the need for a device or an emulator.

Advance features of Robolectric

Robolectric Test Case Classes
